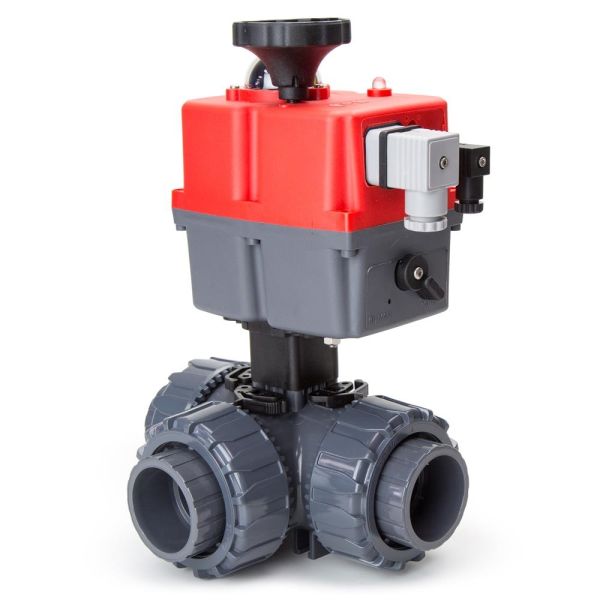

Durapipe PVCu Plain 3-Way Ball Valve T-Port Metric

Key Features / Tech Specs:

• Valve material: polyvinyl chloride unplasticised (PVCu)
• Metric plain ends
• Sizes: 20mm to 63mm
• T-Port - 4 positions
• 24-240V AC/DC Actuator

Useful info:

Actuator:

The electric actuator is manufactured with a fully weatherproof polyamide body that features a selectable manual override that stops the actuator responding to remote signals during operation.

It has an LED light to indicate the status of the actuator as well as auto voltage sensing and an electronic torque limiter with auto-gearbox relaxing.

Valves:

The TK 3-way valves are manufactured by Durapipe and offer full DWI approval across the range.

They have a PVC body with EPDM seals and offer a maximum working pressure of 16 bar.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
