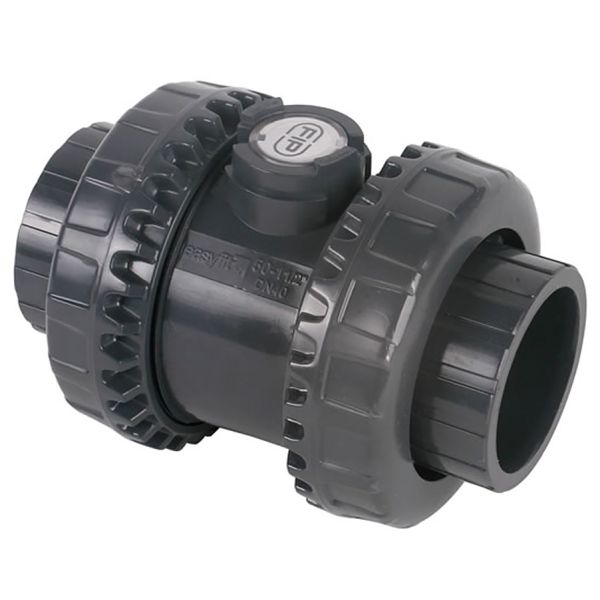

SXE Easyfit Ball Check Valve

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: 16 bar
  • Equipped with plain ends.
  • EPDM seals included.
  • Very easy and quick to install.
  • Corrosion resistant.


Product Code d (mm) L (mm) Z (mm) C (mm) E (mm)
368226 20 17 48 82 50
368227 25 19 55 93 59
368228 32 22 62 106 68
368229 40 26 75 127 80
368230 50 31 84 146 96
368231 63 38 99 175 116



Useful Info:

SXE ball check valve changes in design after 2".

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
368226DP PVCu SX Easyfit Ball Check Valve EPDM Plain 20mm £100.04 30% £70.03
368227DP PVCu SX Easyfit Ball Check Valve EPDM Plain 25mm £114.27 30% £79.99
368228DP PVCu SX Easyfit Ball Check Valve EPDM Plain 32mm £123.08 30% £86.16
368229DP PVCu SX Easyfit Ball Check Valve EPDM Plain 40mm £146.51 30% £102.56
368230DP PVCu SX Easyfit Ball Check Valve EPDM Plain 50mm £152.02 30% £106.41
368231DP PVCu SX Easyfit Ball Check Valve EPDM Plain 63mm £259.72 30% £181.80
