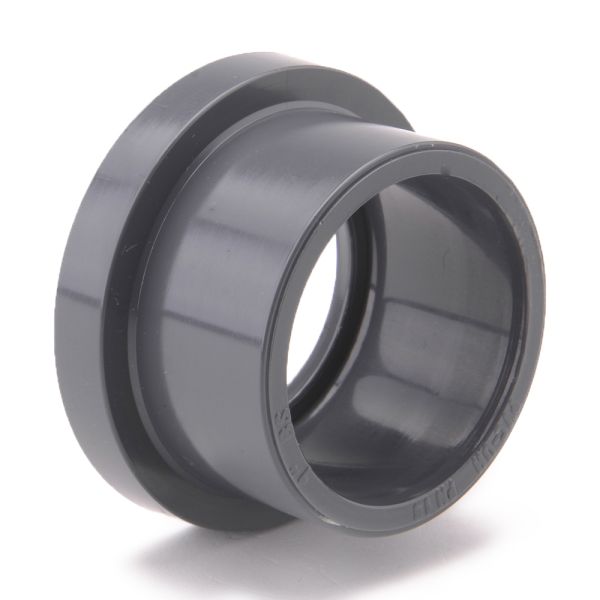

Durapipe PVCu Metric Stub Serrated Flange Plain
Useful Information
Key Features / Tech Specs:
- Manufacturer; Durapipe
- Material: polyvinyl chloride – unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Max. pressure: up to 16 bar (check table for exact pressure rating)
- Very easy and quick to install.
- Corrosion resistant.
| Product Code | d (mm) | PN | L (mm) | Z (mm) | Sp (mm) | E (mm) | F (mm) |
| 368153 | 20 | 16 | 19 | 3 | 7 | 33 | 41 |
| 368154 | 25 | 16 | 22 | 3 | 7 | 41 | 50 |
| 368155 | 32 | 16 | 26 | 3 | 8 | 50 | 61 |
| 368157 | 40 | 16 | 26 | 3 | 8 | 50 | 61 |
| 368158 | 50 | 16 | 31 | 3 | 8 | 61 | 73 |
| 368159 | 63 | 16 | 38 | 3 | 9 | 76 | 90 |
| 368160 | 75 | 16 | 44 | 3 | 10 | 90 | 105 |
| 368161 | 90 | 16 | 51 | 5 | 10 | 108 | 125 |
| 368162 | 110 | 16 | 61 | 4 | 12 | 131 | 150 |
| 368163 | 125 | 16 | 69 | 5 | 13 | 147 | 168 |
| 368164 | 140 | 16 | 76 | 5 | 14 | 165 | 188 |
| 368165 | 160 | 16 | 86 | 4.5 | 16 | 188 | 212 |
| 368166 | 200 | 16 | 106 | 5.5 | 18 | 230 | 254 |
| 368167 | 225 | 16 | 109 | 5.5 | 25 | 245 | 273 |
| 368168 | 250 | 16 | 131 | 8.5 | 20 | 270 | 306 |
| 368169 | 315 | 10 | 165 | 16 | 32 | 346 | 377 |
Useful Info:
Durapipe's PVCu is lightweight yet strong and durable.
Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.
All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.
