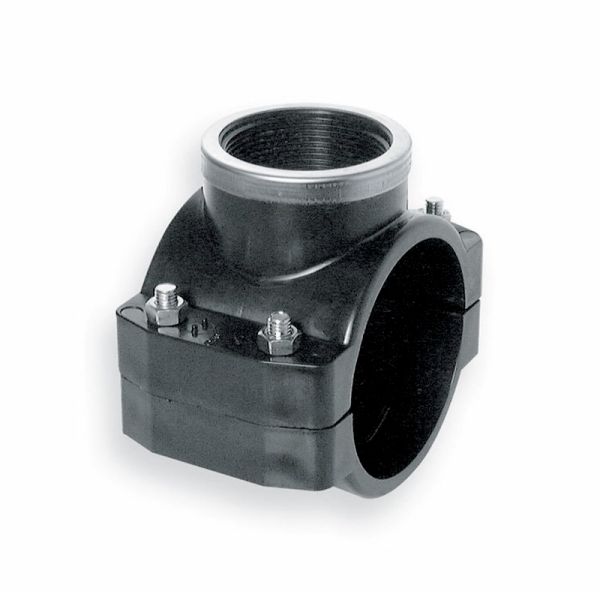

Durapipe PVCu Metric Reinforced Female Threaded Saddle Clamp

Durapipe PVCu Metric Reinforced Female Threaded Saddle Clamp

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Manufacturer; Durapipe
Material: polyvinyl chloride – unplasticised (PVCu)
Temperature rating: 0° - 60°C
Max. pressure: up to 16 bar (check table for exact pressure rating)
Very easy and quick to install.
Corrosion resistant.

Product Code	d x R (mm x mm)	PN	d1 (mm)	L (mm)	E (mm)	H (mm)	Z (mm)
368063	32 x 1/2	16	18	18	82	68	28
368069	50 x 1	16	28	22	104	80	38
368072	63 x 1	16	28	22	116	105	48
368075	75 x 1	16	30	22	134	105	54
368077	90 x 1	16	28	22	152	105	61
368078	90 x 1 1/2	16	40	25	152	105	61
368080	110 x 3/4	16	22	19	176	105	72
368081	110 x 1	16	28	22	176	105	72
368082	110 x 1 1/2	16	40	25	176	105	72
368086	125 x 2	16	50	30	190	112	80
368089	140 x 2	16	50	30	214	114	87
368090	160 x 1	16	28	22	238	120	98
368091	160 x 1 1/2	16	40	25	238	120	98
368092	160 x 2	16	50	30	238	120	98
368093	200 x 2	16	52	30	300	133	118
368094	225 x 1 1/2	16	40	25	333	125	132
368095	225 x 2	16	50	30	333	125	132

Useful Info:

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
368063	DP PVCu Saddle Clamp Plain 32mm x 1/2"	£76.46	30%	£53.52
368069	DP PVCu Saddle Clamp Plain 50mm x 1"	£125.94	30%	£88.16
368072	DP PVCu Saddle Clamp Plain 63mm x 1"	£140.05	30%	£98.03
368075	DP PVCu Saddle Clamp Plain 75mm x 1"	£155.78	30%	£109.04
368077	DP PVCu Saddle Clamp Plain 90mm x 1"	£197.45	30%	£138.21
368078	DP PVCu Saddle Clamp Plain 90mm x 1 1/2"	£197.45	30%	£138.21
368080	DP PVCu Saddle Clamp Plain 110mm x 3/4"	£209.93	30%	£146.95
368081	DP PVCu Saddle Clamp Plain 110mm x 1"	£209.93	30%	£146.95
368082	DP PVCu Saddle Clamp Plain 110mm x 1 1/2"	£227.80	30%	£159.46
368086	DP PVCu Saddle Clamp Plain 125mm x 2"	£241.33	30%	£168.93
368089	DP PVCu Saddle Clamp Plain 140mm x 2"	£283.10	30%	£198.17
368090	DP PVCu Saddle Clamp Plain 160mm x 1"	£333.24	30%	£233.27
368091	DP PVCu Saddle Clamp Plain 160mm x 1 1/2"	£333.24	30%	£233.27
368092	DP PVCu Saddle Clamp Plain 160mm x 2"	£333.27	30%	£233.29
368093	DP PVCu Saddle Clamp Plain 200mm x 2"	£347.30	30%	£243.11
368094	DP PVCu Saddle Clamp Plain 225mm x 1 1/2"	£343.27	30%	£240.29
368095	DP PVCu Saddle Clamp Plain 225mm x 2"	£354.31	30%	£248.02
