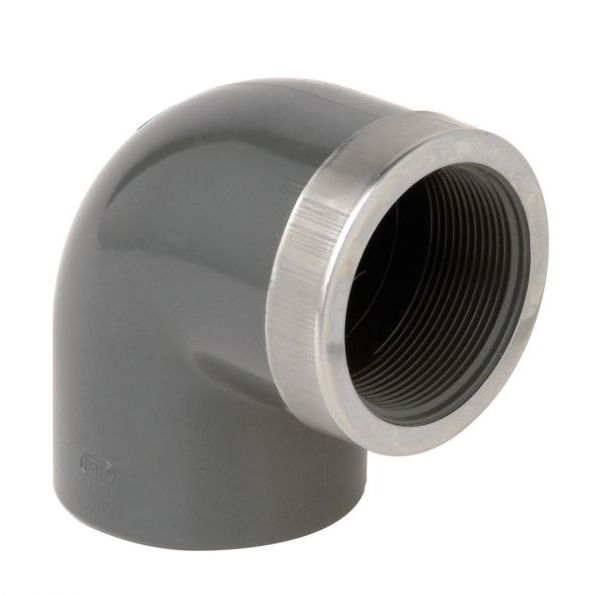

Reinforced Elbow 90° Plain x Threaded

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

WRAS Approved Product - sold by PipestockKey Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: up to 16 bar (check table for exact pressure rating)
  • Very easy and quick to install.
  • WRAS Approved.
  • Corrosion resistant.


Product Code d x R (mm x Inch) PN L (mm) L1 (mm) Z (mm) Z1 (mm) E (mm) E1 (mm)
368127 16 x 3/8 16 14 11 10 13 24 25
368128 20 x 1/2 16 16 15 12 13 29 30
368129 25 x 3/4 16 19 16 14 17 35 36
368130 32 x 1 16 22 19 18 21 43 44
368131 40 x 1 1/4 16 26 21 23 27 54 55
368132 50 x 1 1/2 16 31 21 27 37 61 62
368133 63 x 2 16 38 26 33 46 76 77



Useful Info:

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
368127DP PVCu Elbow 90 Plain / Female BSP Reinforced 16mm x 3/8" £8.87 30% £6.21
368128DP PVCu Elbow 90 Plain / Female BSP Reinforced 20mm x 1/2" £10.61 30% £7.43
368129DP PVCu Elbow 90 Plain / Female BSP Reinforced 25mm x 3/4" £11.59 30% £8.11
368130DP PVCu Elbow 90 Plain / Female BSP Reinforced 32mm x 1" £14.16 30% £9.91
368131DP PVCu Elbow 90 Plain / Female BSP Reinforced 40mm x 1 1/4" £22.71 30% £15.90
368132DP PVCu Elbow 90 Plain / Female BSP Reinforced 50mm x 1 1/2" £30.04 30% £21.03
368133DP PVCu Elbow 90 Plain / Female BSP Reinforced 63mm x 2" £44.07 30% £30.85
