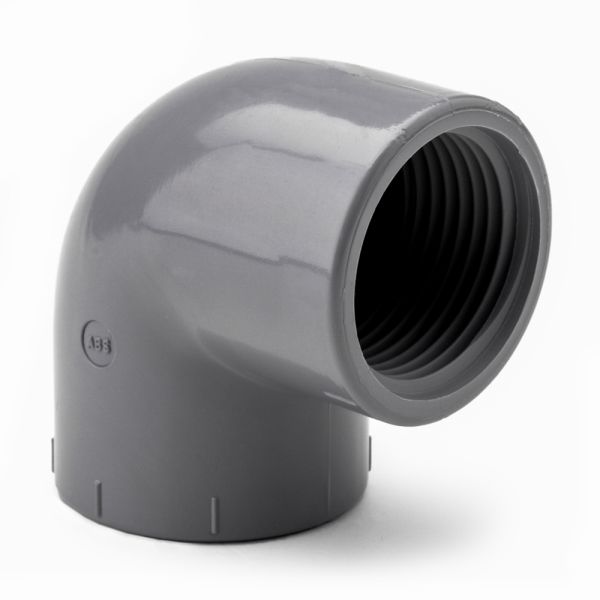

Elbow 90° Plain x Threaded

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

WRAS Approved Product - sold by PipestockKey Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: up to 16 bar (check table for exact pressure rating)
  • Very easy and quick to install.
  • WRAS Approved.
  • Corrosion resistant.


Product Code d x R (mm x Inch) PN L (mm) L1 (mm) Z (mm) Z1 (mm) E (mm)
368118 20 x 1/2 16 16 15 12 13 29
368119 25 x 3/4 16 19 16 14 17 35
368120 32 x 1 16 22 19 18 21 43
368121 40 x 1 1/4 16 26 21 23 27 54
368122 50 x 1 1/2 16 31 21 27 37 61
368123 63 x 2 16 38 26 33 46 76
368124 75 x 2 1/2 16 44 30 41 55 91
368125 90 x 3 16 51 33 48 66 108
368126 110 x 4 16 61 39 60 80 131



Useful Info:

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
368118DP PVCu Elbow 90 Plain / Female BSP Threaded 20mm x 1/2" £8.87 30% £6.21
368119DP PVCu Elbow 90 Plain / Female BSP Threaded 25mm x 3/4" £10.39 30% £7.27
368120DP PVCu Elbow 90 Plain / Female BSP Threaded 32mm x 1" £12.80 30% £8.96
368121DP PVCu Elbow 90 Plain / Female BSP Threaded 40mm x 1 1/4" £25.36 30% £17.75
368122DP PVCu Elbow 90 Plain / Female BSP Threaded 50mm x 1 1/2" £29.35 30% £20.55
368123DP PVCu Elbow 90 Plain / Female BSP Threaded 63mm x 2" £41.65 30% £29.16
368124DP PVCu Elbow 90 Plain / Female BSP Threaded 2 1/2" £70.56 30% £49.39
368125DP PVCu Elbow 90 Plain / Female BSP Threaded 90mm x 3" £93.91 30% £65.74
368126DP PVCu Elbow 90 Plain / Female BSP Threaded 110mm x 4" £138.77 30% £97.14
