Durapipe 2-Way VKD Ball Valve
Technical Specification
- Manufacturer: Durapipe
- Materials:
- Body & Handle: Unplasticised Polyvinyl Chloride (PVCu)
- Seals: EPDM
- Sizes: 1/2" to 4"
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld Union Ends
- Operation: Quater-turn manual operation
- Installation Orientation: Horizontal or vertical
- Features: Patented DualBlock and Seat Stop systems
- Standards:
- WRAS Approved
- BSI Kitemark-certified
Description
The VKD DualBlock 2-way ball valve is a high-performance, fully unionised isolation valve engineered for demanding industrial environments. Designed to withstand severe operating conditions, it incorporates advanced mechanical locking and sealing technologies to deliver long-term reliability and operational safety. Central to the design is FIP’s patented DualBlock system, which mechanically locks the union nuts once tightened, preventing loosening caused by vibration, pressure fluctuations or thermal expansion and maintaining consistent sealing integrity throughout the valve’s service life.
The double union construction allows the valve body to be removed easily from the pipeline for inspection or replacement of seals and seats without specialist tools. The patented Seat Stop ball seat carrier enables fine adjustment of the ball seats and compensation for axial pipe loads without draining the system, making it ideal for critical or continuously operating processes. Manufactured from PVCu with EPDM ball seals, the valve offers smooth operation, excellent chemical resistance and durability, with plain union ends for solvent cement welding and an ergonomic VKD-style handle that incorporates a removable ball seat adjustment tool.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- DualBlock locking technology: Patented system secures union nuts to prevent loosening under vibration or thermal movement.
- Fully demountable design: Double union construction allows easy removal of the valve body for servicing or replacement.
- Seat Stop system: Enables micro-adjustment of ball seats and compensation for axial pipe loads without draining the system.
- PVCu construction: Offers excellent chemical resistance and durability in harsh industrial environments.
- EPDM ball seals: Provide smooth operation, reduced wear and reliable long-term sealing.
- High pressure capability: Rated up to 16 bar at 20°C for demanding applications.
- Ergonomic VKD handle: Designed for comfortable operation and includes an integrated ball seat adjustment tool.
- Actuation ready: Compatible with electric or pneumatic actuators using ISO 5211 mounting standards.

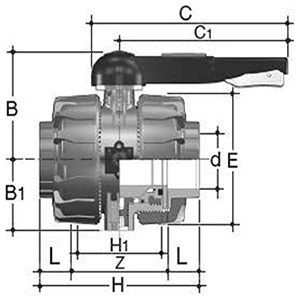

Dimensions
| SKU | Manufacturer Code | Nominal Size (inch) | DN (mm) | L (mm) | Z (mm) | H (mm) | H1 (mm) | E (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) | Weight (kg) |
| 354564 | H0DKE102 | 1/2 | 15 | 16 | 70 | 103 | 65 | 54 | 54 | 29 | 67 | 40 | 0.205 |
| 354565 | H0DKE103 | 3/4 | 20 | 19 | 77 | 115 | 70 | 65 | 65 | 35 | 85 | 49 | 0.335 |
| 354566 | H0DKE104 | 1 | 25 | 22 | 83 | 128 | 78 | 73 | 70 | 39 | 85 | 49 | 0.433 |
| 354567 | H0DKE105 | 1 1/4 | 32 | 26 | 94 | 146 | 88 | 86 | 83 | 46 | 108 | 64 | 0.703 |
| 354568 | H0DKE106 | 1 1/2 | 40 | 30 | 106 | 164 | 91 | 98 | 89 | 52 | 108 | 64 | 0.925 |
| 354569 | H0DKE107 | 2 | 50 | 36 | 127 | 199 | 111 | 122 | 108 | 62 | 134 | 76 | 1.577 |
| 354579 | H0DKE312 | 2 1/2 | 65 | 44 | 147 | 235 | 133 | 164 | 164 | 87 | 225 | 175 | 4.380 |
| 354570 | H0DKE109 | 3 | 80 | 51 | 168 | 270 | 149 | 203 | 177 | 105 | 327 | 272 | 7.200 |
| 354571 | H0DKE110 | 4 | 100 | 61 | 186 | 308 | 167 | 238 | 195 | 129 | 385 | 330 | 11.141 |
