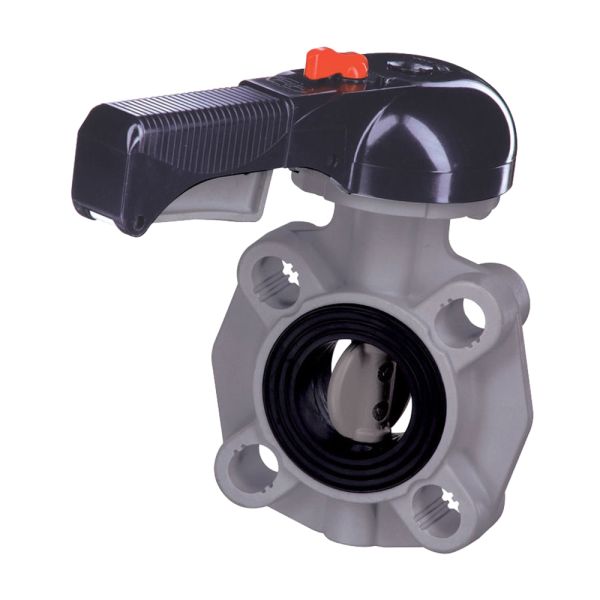

FK Butterfly Valve

Useful Information

Key Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: up to 16 bar (see table for specific values)
  • Equipped with plain ends.
  • EPDM seals included.
  • Very easy and quick to install.
  • Corrosion resistant.


Product Code d (Inch) DN (mm) PN B2 (mm) B3 (mm) C (mm) C1 (mm)
367751 1 1/2 40 16 60 137 175 100
367752 2 50 16 70 143 175 100
367753 2 1/2 65 10 80 164 272 110
367754 3 80 10 93 178 272 110
367755 4 100 10 107 192 272 110
367756 5 125 10 120 212 330 110
367757 6 150 10 134 225 330 110
367758 8 200 10 161 272 420 122



Useful Info:

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
367751DP PVCu FK Butterfly Valve EPDM 1 1/2" £405.75 30% £284.03
367752DP PVCu FK Butterfly Valve EPDM 2" £428.02 30% £299.61
367753DP PVCu FK Butterfly Valve EPDM 2 1/2" £470.06 30% £329.04
367754DP PVCu FK Butterfly Valve EPDM 3" £518.00 30% £362.60
367755DP PVCu FK Butterfly Valve EPDM 4" £627.40 30% £439.18
367756DP PVCu FK Butterfly Valve EPDM 5" £812.13 30% £568.49
367757DP PVCu FK Butterfly Valve EPDM 6" £998.85 30% £699.20
367758DP PVCu FK Butterfly Valve EPDM 8" £1,486.59 30% £1,040.61
