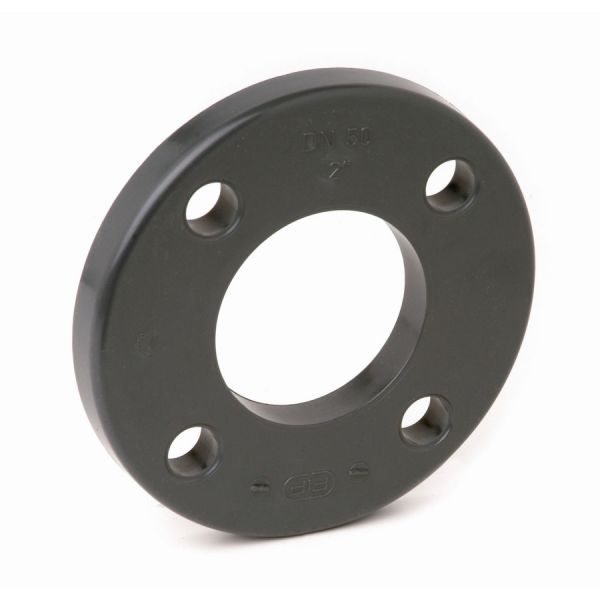

PVCu Backing Ring

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

WRAS Approved Product - sold by PipestockKey Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: 10 bar
  • Very easy and quick to install.
  • WRAS Approved.
  • Corrosion resistant.


Prodct Code D (inch x mm) PN E (mm) d1 (mm) a (mm) Sp (mm) f (mm) U (mm) b (mm)
367655 1/2" / 20mm 10 96 28 65 11 14 4 M12 x 70
367656 3/4" / 25mm 10 107 34 75 12 14 4 M12 x 70
367657 1" / 32mm 10 117 42 85 14 14 4 M12 x 70
367658 1 1/4" / 40mm 10 143 51 100 15 18 4 M16 x 85
367659 1 1/2" / 50mm 10 153 62 110 16 18 4 M16 x 85
367660 2" / 63mm 10 168 78 125 18 18 4 M16 x 95
367661 2 1/2" / 75mm 10 188 92 145 19 18 4 M16 x 95
367662 3" / 90mm 10 203 109 160 20 18 8 M16 x 105
367663 4" / 110mm 10 222 132 180 22 18 8 M16 x 105
367664 5" / 140mm 10 251 166 210 26 18 8 M16 x 120
367665 6" / 200mm 10 340 235 295 30 22 8 M20 x 140
367666 8" / 225mm 10 340 252 295 30 22 8 M20 x 140
367667 10" / 280mm 10 396 309 350 35 22 12 M20 x 160



Useful Info:

All the required nuts, bolts and spanners are separately available.

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
367655DP PVCu Backing Ring Drilled to PN10 1/2" or 20mm £18.08 30% £12.66
367656DP PVCu Backing Ring Drilled to PN10 3/4" or 25mm £20.32 30% £14.22
367657DP PVCu Backing Ring Drilled to PN10 1" or 32mm £21.72 30% £15.20
367658DP PVCu Backing Ring Drilled to PN10 1 1/4" or 40mm £26.76 30% £18.73
367659DP PVCu Backing Ring Drilled to PN10 1 1/2" or 50mm £27.78 30% £19.45
367660DP PVCu Backing Ring Drilled to PN10 2"or 63mm £38.57 30% £27.00
367661DP PVCu Backing Ring Drilled to PN10 2 1/2" or 75mm £43.05 30% £30.14
367662DP PVCu Backing Ring Drilled to PN10 3" or 90mm £47.07 30% £32.95
367663DP PVCu Backing Ring Drilled to PN10 4" or 110mm £54.79 30% £38.35
367664DP PVCu Backing Ring Drilled to PN10 5" or 140mm £99.04 30% £69.33
367665DP PVCu Backing Ring Drilled to PN10 6" or 200mm £130.24 30% £91.17
367666DP PVCu Backing Ring Drilled to PN10 8" or 225mm £184.34 30% £129.04
367667DP PVCu Backing Ring Drilled to PN10 10" or 280mm £289.24 30% £202.47
