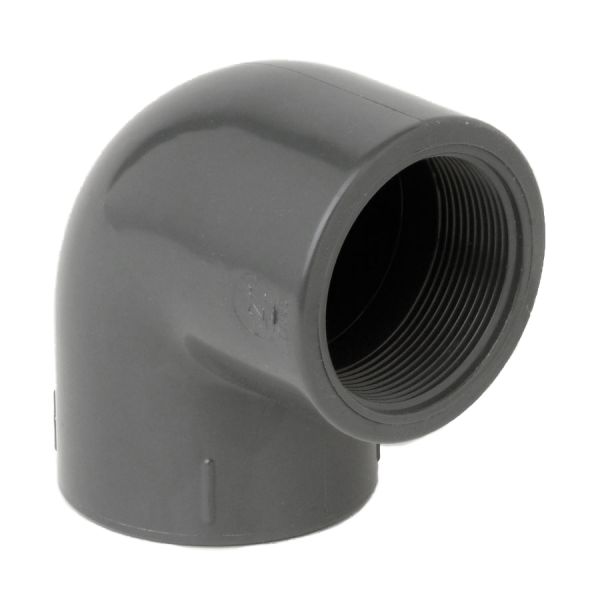

Durapipe PVC Elbow 90° Threaded
Useful Information
Key Features / Tech Specs:
- Manufacturer; Durapipe
- Material: polyvinyl chloride – unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Max. pressure: up to 15 bar (check table for exact pressure rating)
- Very easy and quick to install.
- Corrosion resistant.
| Prodct Code | Size (inch) | PN | L (mm) | Z (mm) | E (mm) |
| 367534 | 1/2 | 16 | 15 | 13 | 29 |
| 367535 | 3/4 | 16 | 16 | 17 | 35 |
| 367536 | 1 | 16 | 19 | 21 | 43 |
| 367537 | 1 1/4 | 16 | 21 | 27 | 54 |
| 367538 | 1 1/2 | 16 | 21 | 36 | 61 |
| 367539 | 2 | 16 | 26 | 46 | 76 |
| 367540 | 2 1/2 | 16 | 30 | 55 | 91 |
| 367541 | 3 | 16 | 33 | 66 | 108 |
| 367542 | 4 | 16 | 39 | 80 | 130 |
Useful Info:
Durapipe's PVCu is lightweight yet strong and durable.
Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.
All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
