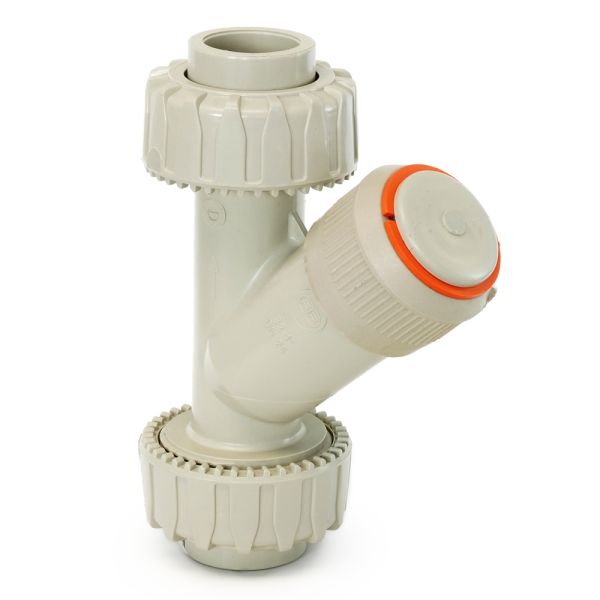

Durapipe PPh Y Strainer EPDM Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Seal material: ethylene propylene diene monomer rubber
- Pressure rated to 10 bar
- Available in sizes from 20mm to 63mm
| Product Code | d (mm) | DN (mm) | A max (mm) | B (mm) | E (mm) | H (mm) | Z (mm) |
| 384156 | 20 | 15 | 125 | 71 | 55 | 138 | 109 |
| 384157 | 25 | 20 | 145 | 83 | 65 | 157 | 125 |
| 384158 | 32 | 25 | 165 | 94 | 74 | 179 | 143 |
| 384159 | 40 | 32 | 190 | 109 | 86 | 205 | 164 |
| 384160 | 50 | 40 | 210 | 119 | 99 | 244 | 197 |
| 384161 | 63 | 50 | 240 | 142.5 | 120 | 294 | 239 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These PPh Y strainers are ideal for use in many industrial applications that require the filtering solid particles within a pipeline.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
