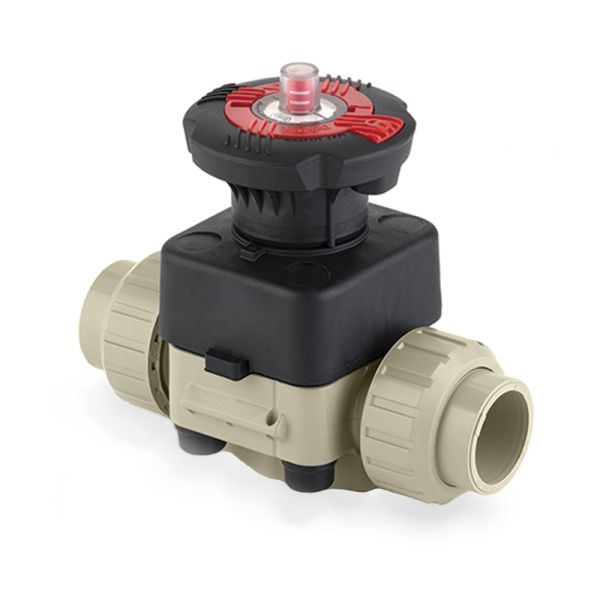

Durapipe PPh Dialock Diaphragm Valve FPM Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Seal material: fluoro rubber
- Size range from 20mm to 75mm
- Operating pressure rated to 10 bar
| Product Code | d (mm) | B (mm) | B1 (mm) | E (mm) | H (mm) | H1 (mm) | LA (mm) | R1 (inch) | Z (mm) |
| 384128 | 20 | 4.02 | 0.98 | 1.61 | 5.08 | 3.15 | 3.54 | 1 | 3.94 |
| 384129 | 25 | 4.13 | 1.18 | 1.97 | 6.06 | 3.15 | 4.25 | 1.25 | 4.57 |
| 384130 | 32 | 4.49 | 1.3 | 2.28 | 6.61 | 3.15 | 4.57 | 1.5 | 4.88 |
| 384131 | 40 | 4.69 | 1.18 | 2.83 | 7.56 | 3.15 | 5.28 | 2 | 5.51 |
| 384132 | 50 | 5.79 | 1.38 | 3.11 | 8.74 | 4.72 | 6.06 | 1.25 | 6.3 |
| 384133 | 63 | 6.77 | 1.81 | 3.86 | 10.47 | 4.72 | 7.24 | 2.75 | 7.48 |
| Product Code | d (mm) | B (mm) | B1 (mm) | H (mm) | H1 (mm) | L (mm) |
| 384134 | 75 | 6.77 | 1.81 | 11.18 | 4.72 | 1.73 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
This Durapipe diaphragm valve features the innovative Dialock locking mechanism, which allows the handwheel to be locked in over 300 positions.
