Durapipe PPh Butterfly Valve EPDM
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Seal material: ethylene propylene diene monomer rubber
- Size range from 50mm to 225mm
- Operating pressure rated to 10 bar
| Product Code | d (mm) | DN (mm) | B1 (mm) | B2 (mm) | H (mm) | z (mm) | A min (mm) | A max (mm) | f (mm) | No. of Holes | C (mm) | C1 (mm) |
| 384139 | 50 | 40 | 137 | 60 | 132 | 33 | 99 | 109 | 19 | 4 | 175 | 100 |
| 384140 | 63 | 50 | 143 | 70 | 147 | 43 | 115 | 126 | 19 | 4 | 175 | 100 |
| 384141 | 75 | 65 | 164 | 80 | 165 | 46 | 128 | 144 | 19 | 8 | 175 | 110 |
| 384142 | 90 | 80 | 178 | 93 | 185 | 49 | 145 | 160 | 19 | 8 | 272 | 110 |
| 384143 | 110 | 100 | 192 | 107 | 211 | 56 | 165 | 190 | 19 | 8 | 272 | 110 |
| 384144 | 140 | 125 | 212 | 120 | 240 | 64 | 204 | 215 | 23 | 8 | 330 | 110 |
| 384145 | 160 | 150 | 225 | 134 | 268 | 70 | 230 | 242 | 23 | 8 | 330 | 110 |
| 384146 | 225 | 200 | 272 | 161 | 323 | 114 | 280 | 298 | 23 | 8 | 420 | 122 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:

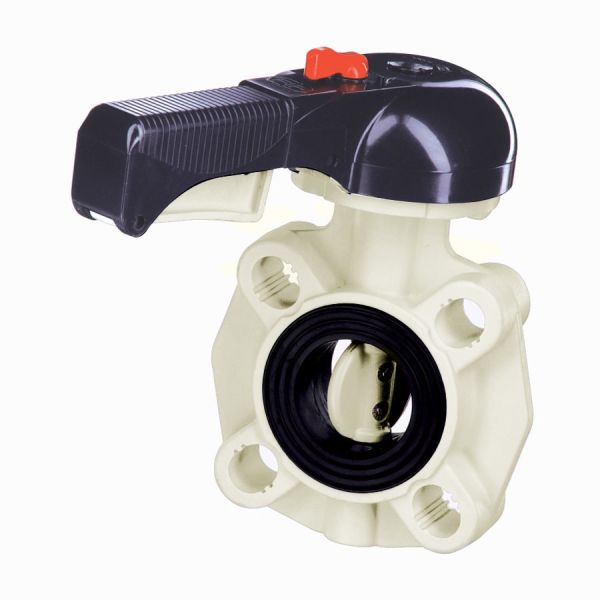

This Durapipe butterfly valve is lever-controlled, allowing on/off and flow control operation.
The oval holes allow the full flanged body to fit various flanging standards.
