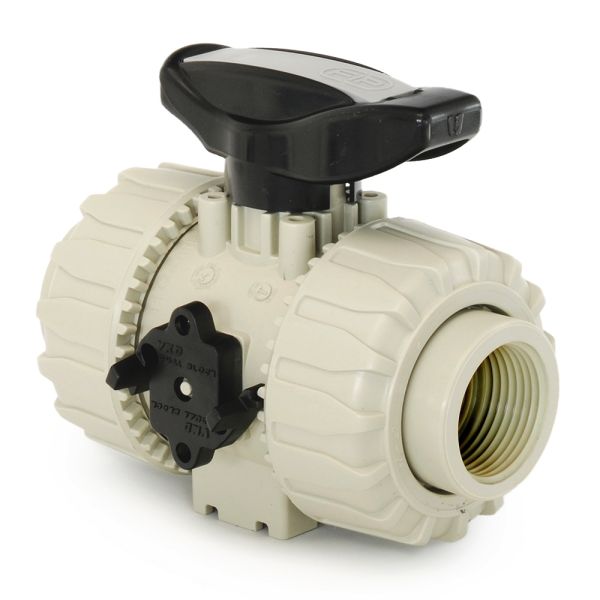

Durapipe PPh Ball Valve EPDM Threaded
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Seal material: ethylene propylene diene monomer rubber
- Female BSP threads
- Size range from 1/2" to 2"
- Operating pressure rated to 10 bar
| Product Code | d (inch) | DN (mm) | L (mm) | Z (mm) | H (mm) | H1 (mm) | E (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) | Weight (g) |
| 384097 | 1/2 | 15 | 15 | 80 | 110 | 65 | 54 | 54 | 29 | 67 | 40 | 145 |
| 384098 | 3/4 | 20 | 16.3 | 83.4 | 116 | 70 | 65 | 65 | 34.5 | 85 | 49 | 220 |
| 384099 | 1 | 25 | 19.1 | 95.8 | 134 | 78 | 73 | 69.5 | 39 | 85 | 49 | 298 |
| 384100 | 1 1/4 | 32 | 21.4 | 110.2 | 153 | 88 | 86 | 82.5 | 46 | 108 | 64 | 488 |
| 384101 | 1 1/2 | 40 | 21.4 | 113.2 | 156 | 91 | 98 | 89 | 52 | 108 | 64 | 682 |
| 384102 | 2 | 50 | 25.7 | 134.6 | 186 | 111 | 122 | 108 | 62 | 134 | 76 | 1181 |
Useful Info:
This Durapipe VKD 2-way ball valve features the patented DualBlock locking system, which ensures the union nuts remain fully retained in position, regardless of thermal expansion or vibration.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
