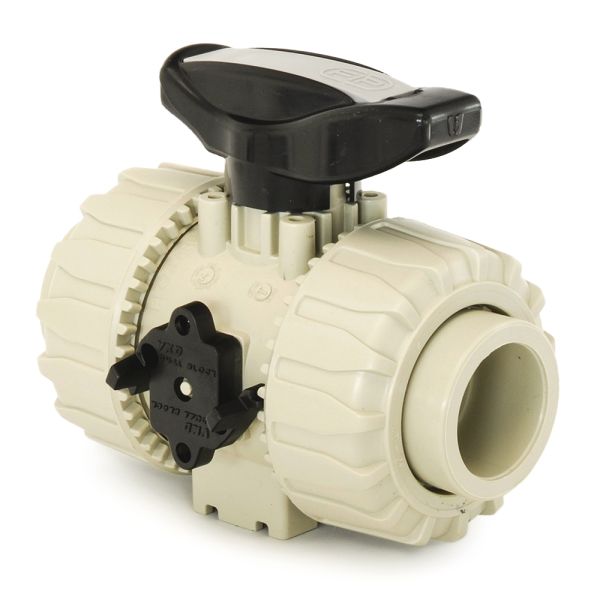

Durapipe PPh Ball Valve EPDM Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Seal material: ethylene propylene diene monomer rubber
- Size range from 20mm to 110mm
- Lockable handle on sizes 75mm to 110mm
- Operating pressure rated to 10 bar
| Product Code | d (mm) | DN (mm) | Z (mm) | H (mm) | H1 (mm) | E (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) | Weight (g) |
| 384088 | 20 | 15 | 73 | 102 | 65 | 54 | 54 | 29 | 67 | 40 | 145 |
| 384089 | 25 | 20 | 82 | 114 | 70 | 65 | 65 | 34.5 | 85 | 49 | 228 |
| 384090 | 32 | 25 | 90 | 126 | 78 | 73 | 69.5 | 39 | 85 | 49 | 308 |
| 384091 | 40 | 32 | 100 | 141 | 85 | 86 | 82.5 | 46 | 108 | 64 | 490 |
| 384092 | 50 | 40 | 117 | 164 | 93 | 98 | 89 | 52 | 108 | 64 | 692 |
| 384093 | 63 | 50 | 144 | 199 | 111 | 122 | 108 | 62 | 134 | 76 | 1176 |
| Product Code | d (mm) | DN (mm) | L (mm) | Z (mm) | H (mm) | H1 (mm) | E (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) | Weight (g) |
| 384094 | 75 | 65 | 44 | 147 | 235 | 133 | 164 | 164 | 87 | 225 | 175 | 3090 |
| 384095 | 90 | 80 | 51 | 168 | 270 | 149 | 203 | 177 | 105 | 327 | 272 | 5080 |
| 384096 | 110 | 100 | 63 | 182 | 308 | 167 | 238 | 195 | 129 | 385 | 330 | 7725 |
Useful Info:
This Durapipe VKD 2-way ball valve features the patented DualBlock locking system, which ensures the union nuts remain fully retained in position, regardless of thermal expansion or vibration.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
