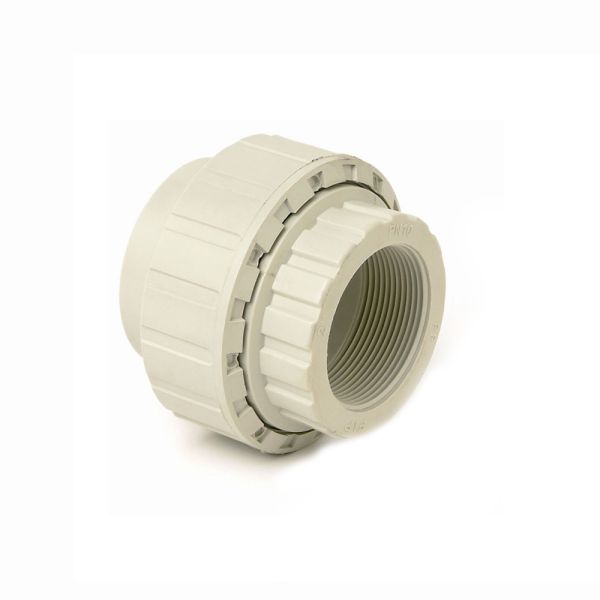

Durapipe PPh Socket Union Plain x F BSP EPDM
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm x 1/2" to 63mm x 2"
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | R (inch) | E (mm) | H (mm) | Z1 (mm) | Z2 (mm) | Weight (g) | di (mm) | T (mm) |
| 383678 | 20 | 1/2 | 52 | 52.2 | 6.9 | 16.5 | 51 | 20.22 | 3.53 |
| 383679 | 25 | 3/4 | 61.5 | 56 | 7.2 | 17.2 | 75 | 28.17 | 3.53 |
| 383680 | 32 | 1 | 70 | 61 | 7.5 | 17.5 | 115 | 32.93 | 3.53 |
| 383681 | 40 | 1 1/4 | 82 | 69 | 7.6 | 20.6 | 155 | 40.65 | 5.34 |
| 383682 | 50 | 1 1/2 | 90.5 | 77 | 7.7 | 21.4 | 210 | 47 | 5.34 |
| 383683 | 63 | 2 | 106 | 85.5 | 7.9 | 22.3 | 310 | 59.6 | 5.34 |
Useful Info:
This fitting joins to a polypropylene pipe via socket fusion, allowing connection to another threaded component.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
