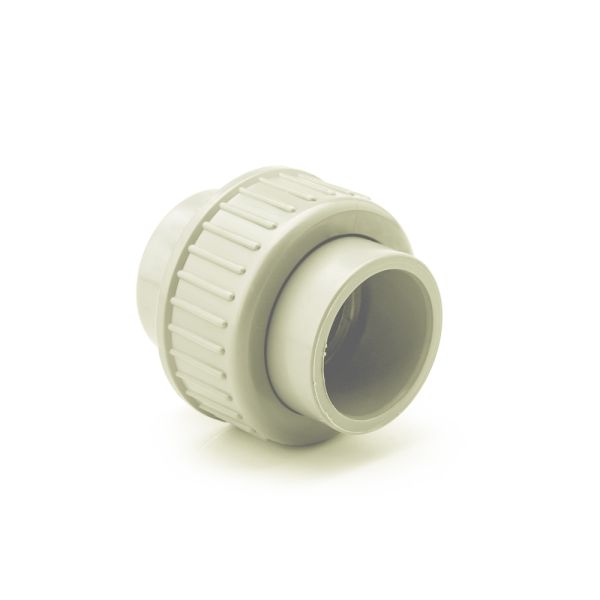

Durapipe PPh Socket Union Plain FPM
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 63mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | E (mm) | H (mm) | Z1 (mm) | Z2 (mm) | Weight (g) | Circumference (mm) | di (mm) | T (mm) |
| 383645 | 20 | 52 | 52.5 | 6.9 | 16.5 | 53 | 4081 | 20.22 | 3.53 |
| 383646 | 25 | 62 | 56.5 | 7.2 | 17.2 | 75 | 4112 | 28.17 | 3.53 |
| 383647 | 32 | 70 | 61 | 7.5 | 17.5 | 110 | 4131 | 32.93 | 3.53 |
| 383648 | 40 | 82 | 70 | 7.6 | 20.6 | 160 | 6162 | 40.65 | 5.34 |
| 383649 | 50 | 90.5 | 76.5 | 7.7 | 21,4 | 205 | 6187 | 47 | 5.34 |
| 383650 | 63 | 106 | 85.5 | 7.9 | 22.3 | 305 | 6237 | 59.6 | 5.34 |
Useful Info:
This fitting is to join two polypropylene pipes at an angle of 90°, via socket fusion.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
