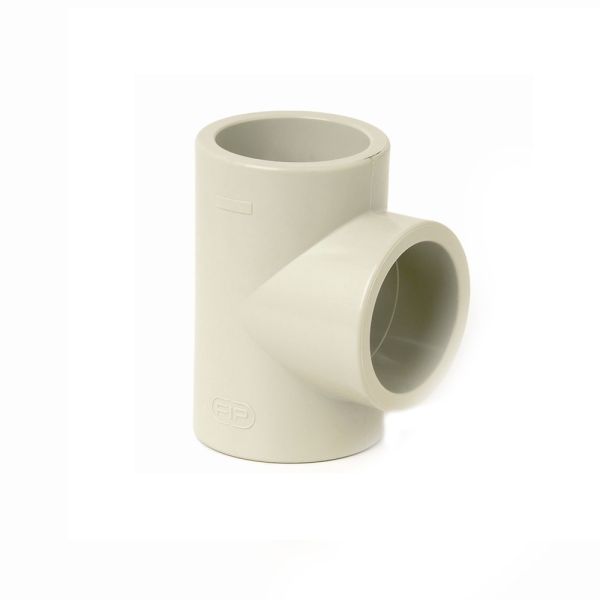

Durapipe PPh Tee 90° Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 110mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | E (mm) | H (mm) | Z (mm) | Weight (g) |
| 383636 | 20 | 27.5 | 27.5 | 13 | 19 |
| 383637 | 25 | 33.5 | 31.5 | 15.5 | 30 |
| 383638 | 32 | 41.5 | 37 | 19 | 47 |
| 383639 | 40 | 52 | 43 | 22.5 | 80 |
| 383640 | 50 | 64 | 52 | 28.5 | 145 |
| 383641 | 63 | 79.5 | 62.5 | 35 | 250 |
| 383642 | 75 | 92.5 | 71 | 40 | 370 |
| 383643 | 90 | 110.5 | 81.5 | 46 | 560 |
| 383644 | 110 | 134.5 | 99.5 | 58 | 990 |
Useful Info:
This fitting is to join three polypropylene pipes at an angle of 90°, via socket fusion.
