Durapipe PPh Hose Adaptor
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 63mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | P1 (mm) | P2 (mm) | L (mm) | H (mm) | Weight (g) |
| 383666 | 20 | 22 | 20 | 16 | 67 | 11 |
| 383667 | 25 | 27 | 25 | 18 | 81 | 20 |
| 383668 | 32 | 32 | 30 | 20 | 95 | 33 |
| 383669 | 40 | 42 | 40 | 22 | 104 | 68 |
| 383670 | 50 | 52 | 50 | 25 | 111 | 100 |
| 383671 | 63 | 64 | 60 | 29 | 122 | 150 |
Useful Info:

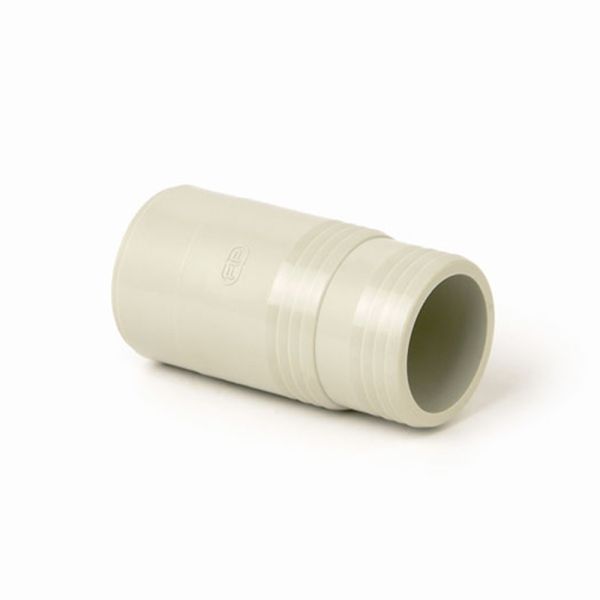

This barbed adaptor allows connection between a polypropylene pipe and a hose.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
