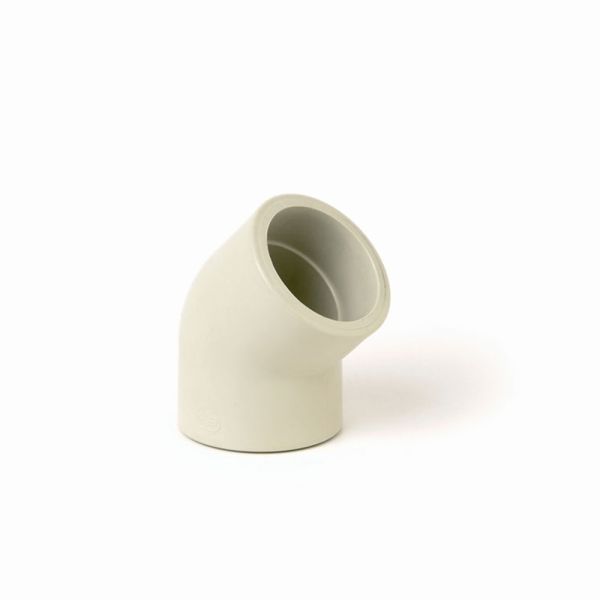

Durapipe PPh Elbow 45° Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 110mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | E (mm) | H (mm) | Z (mm) | Weight (g) |
| 383618 | 20 | 27.5 | 21 | 6.5 | 12 |
| 383619 | 25 | 33.5 | 24.5 | 8.5 | 19 |
| 383620 | 32 | 42 | 29 | 12 | 33 |
| 383621 | 40 | 51.5 | 35.5 | 15 | 57 |
| 383622 | 50 | 63 | 42.5 | 19 | 105 |
| 383623 | 63 | 79 | 51 | 23.5 | 182 |
| 383624 | 75 | 92 | 71 | 38.5 | 240 |
| 383625 | 90 | 113 | 83 | 46 | 420 |
| 383626 | 110 | 135 | 98 | 56 | 660 |
Useful Info:
This fitting is to join two polypropylene pipes at an angle of 45°, via socket fusion.
