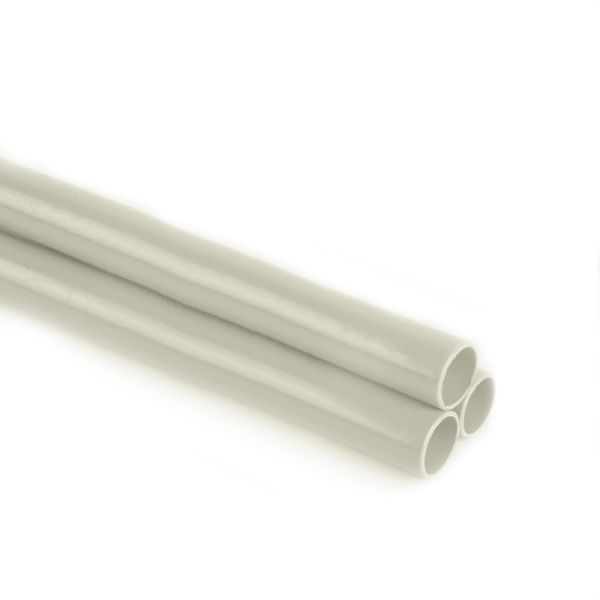

Durapipe PPh Pipe PN10
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Colour: RAL 7032 beige
- Size range from 20mm to 400mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | Internal Diameter (mm) | s (mm) | Weight (kg/m) | Length (m) |
| 34323 | 20 | 15 | 1.9 | 0.11 | 5 |
| 34324 | 25 | 20 | 2.3 | 0.16 | 5 |
| 34325 | 32 | 25 | 2.9 | 0.26 | 5 |
| 34326 | 40 | 32 | 3.7 | 0.41 | 5 |
| 34327 | 50 | 40 | 4.6 | 0.64 | 5 |
| 34328 | 63 | 50 | 5.8 | 1.01 | 5 |
| 34329 | 75 | 65 | 6.8 | 1.4 | 5 |
| 34330 | 90 | 80 | 8.2 | 2.02 | 5 |
| 34331 | 110 | 100 | 10 | 3.01 | 5 |
Useful Info:
Butt fusion welding involves the use of a machine which simultaneously heats the ends of the pipe and fitting until they reach a melting point. This then produces a permanent and leak-free joint between them.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
