Durapipe PLX Spigot x M BSP
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 50mm x 1½" to 110mm x 4"
- Pressure rated to 10 bar
- 39.5v
| Product Code | Outer Diameter (mm x inch) | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) |
| 383346 | 50 x 1½ | 160.5 | 103 | 58 | 73 | 36.5 |
| 383347 | 63 x 1½ | 167.5 | 110 | 65 | 73 | 36.5 |
| 383348 | 63 x 2 | 167.5 | 110 | 65 | 73 | 36.5 |
| 383349 | 90 x 3 | 209 | 120 | 70 | 100 | 50 |
| 383350 | 110 x 4 | 244 | 140 | 85 | 121 | 60.5 |
Useful Info:

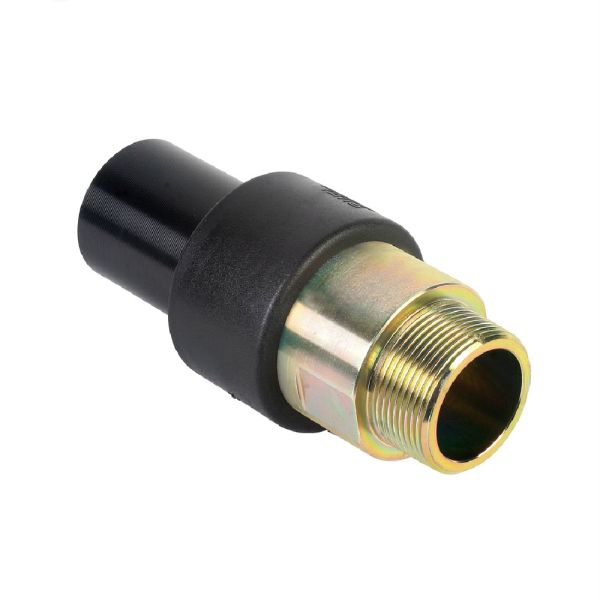

This male BSP spigot adaptor is used to connect the spigot to a PLX connection and the male end to a female BSP threaded connection.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
