Durapipe PLX Spigot x F BSP
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 50mm x 1½" to 110mm x 4"
- Pressure rated to 10 bar
- 39.5v
| Product Code | Outer Diameter (mm x inch) | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) |
| 383341 | 50 x 1½ | 135.5 | 103 | 58 | 73 | 36.5 |
| 383342 | 63 x 1½ | 142.5 | 110 | 65 | 73 | 36.5 |
| 383343 | 63 x 2 | 142.5 | 110 | 65 | 85 | 42.5 |
| 383344 | 90 x 3 | 180 | 130 | 80 | 99 | 49.5 |
| 383345 | 110 x 4 | 203 | 150 | 80 | 131 | 65.5 |
Useful Info:

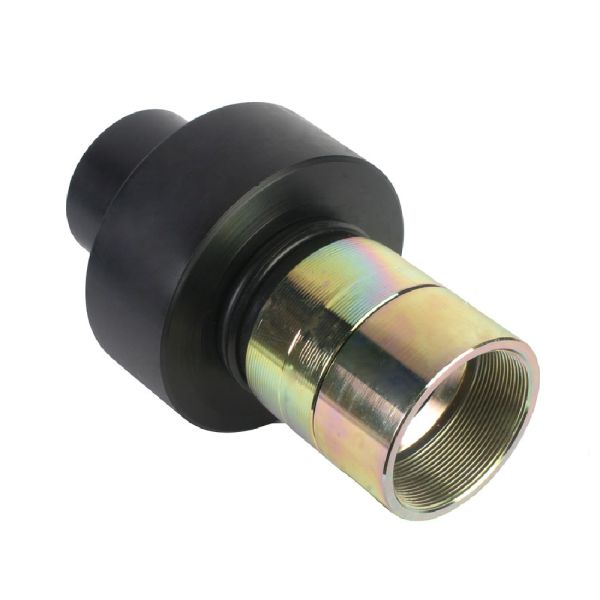

This female BSP spigot adaptor is used to connect the spigot to a PLX connection and the Female end to a male BSP threaded connection.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
