Durapipe PLX Reducing Coupling
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 32mm to 110mm
- Pressure rated to 10 bar
- 39.5v
| Product Code | Outer Diameter (mm) | L (mm) | D1 (mm) | d1 (mm) | D2 (mm) | d2 (mm) |
| 383320 | 32 x 50 | 110 | 68 | 50 | 45 | 32 |
| 383321 | 32 x 63 | 125 | 82 | 63 | 45 | 32 |
| 383322 | 50 x 63 | 125 | 82 | 63 | 68 | 50 |
| 383323 | 63 x 90 | 160 | 117 | 90 | 82 | 63 |
| 383324 | 90 x 110 | 180 | 140 | 110 | 115 | 90 |
| 383325 | 110 x 160 | 230 | 201 | 160 | 140 | 110 |
Useful Info:

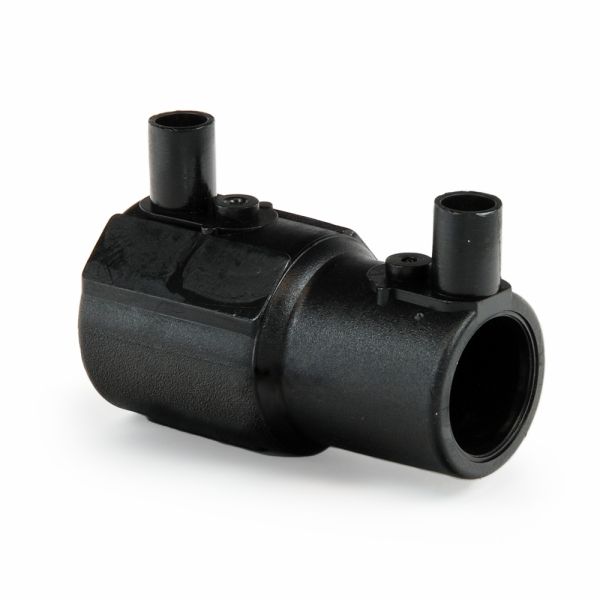

This fusion coupling is used to connect two pieces of PLX pipe of different diameter.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
