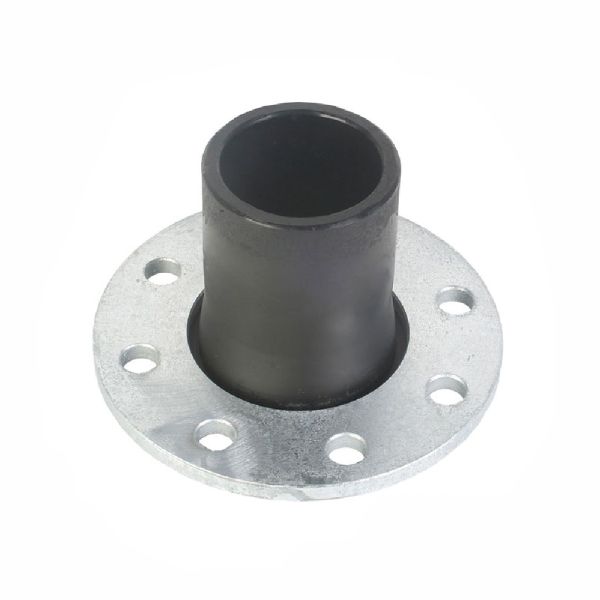

Durapipe PLX Stub Flange
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 50mm to 110mm
- Pressure rated to 10 bar
- Zinc plated mild steel backing ring
| Product Code | Outer Diameter (mm) | L (mm) | l1 (mm) | l2 (mm) | l3 (mm) | d1 (mm) | d2 (mm) | d3 (mm) |
| 383364 | 50 | 100 | 10 | 45 | 64 | 32.5 | 60 | 110 |
| 383365 | 63 | 115 | 10 | 50 | 83 | 44 | 74 | 125 |
| 383366 | 90 | 136 | 16 | 55 | 13 | 65 | 100 | 160 |
| 383367 | 110 | 156 | 16 | 63 | 13 | 77 | 125 | 180 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
