Single Wall Elbow 90°

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Polyethylene
  • Sizes available: 32mm to 110mm
  • Pressure rated to 10 bar
  • 39.5v

PLX Elbow 90


Product Code Outer Diameter (mm) L (mm) l1 (mm) l2 (mm) d1 (mm) d2 (mm)
383310 32 82 60 40 42 38
383311 50 113 80 50 65 49
383312 63 130 91 54 78 56
383313 90 181 126 69 111 72
383314 110 210 142 71 136 85

Useful Info:

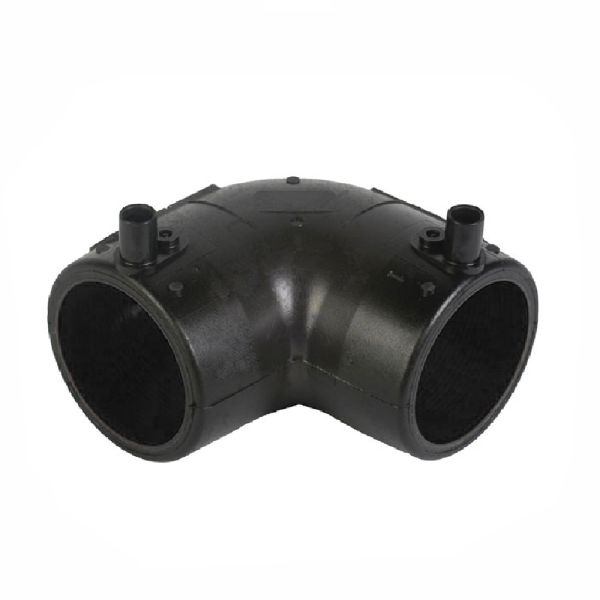

This fusion elbow is used to connect two pieces of PLX pipe of the same diameter at an angle of 90°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383310DP PLX Single Wall 90° Elbow 32mm £22.11 20% £17.69
383311DP PLX Single Wall 90° Elbow 50mm £38.94 20% £31.15
383312DP PLX Single Wall 90° Elbow 63mm £43.26 20% £34.61
