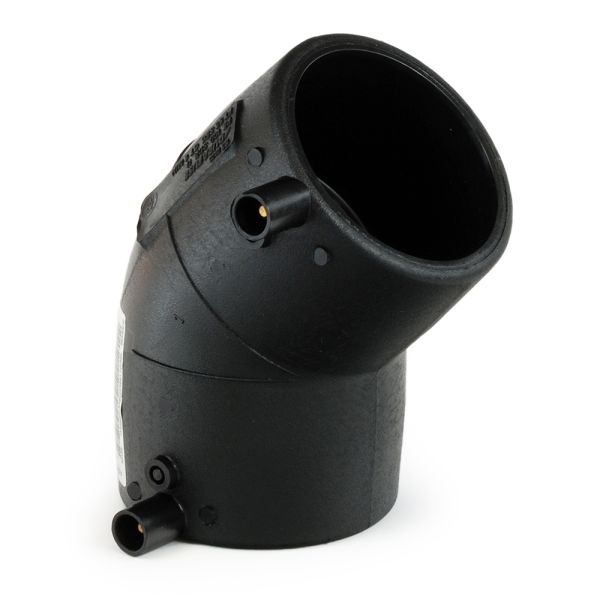

Single Wall Elbow 45°

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Polyethylene
  • Sizes available: 32mm to 110mm
  • Pressure rated to 10 bar
  • 39.5v

PLX Elbow 45


Product Code Outer Diameter (mm) L (mm) l1 (mm) l2 (mm) d1 (mm) d2 (mm)
383305 32 83 48 40 42 38
383306 50 99 57 45 66 50
383307 63 113 65 50 80 57
383308 90 154 89 69 115 75
383309 110 172 99 70 136 85

Useful Info:

This fusion elbow is used to connect two pieces of PLX pipe of the same diameter at an angle of 45°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383305DP PLX Single Wall 45° Elbow 32mm £22.06 20% £17.65
383306DP PLX Single Wall 45° Elbow 50mm £38.94 20% £31.15
383307DP PLX Single Wall 45° Elbow 63mm £43.26 20% £34.61
