Single Wall Adaptor x F BSP

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Polyethylene
  • Sizes available: 32mm x 1" to 63mm x 2"
  • Pressure rated to 10 bar
  • 39.5v

PLX Female Adaptor


Product Code Outer Diameter (mm x inch) L (mm) l1 (mm) l2 (mm) d1 (mm) d2 (mm)
383469 32 x 1 122 83 40.5 44 39
383470 50 x 1½ 139.5 107 63.5 73 53
383471 63 x 2 140.5 108 64.5 85 59.5

Useful Info:

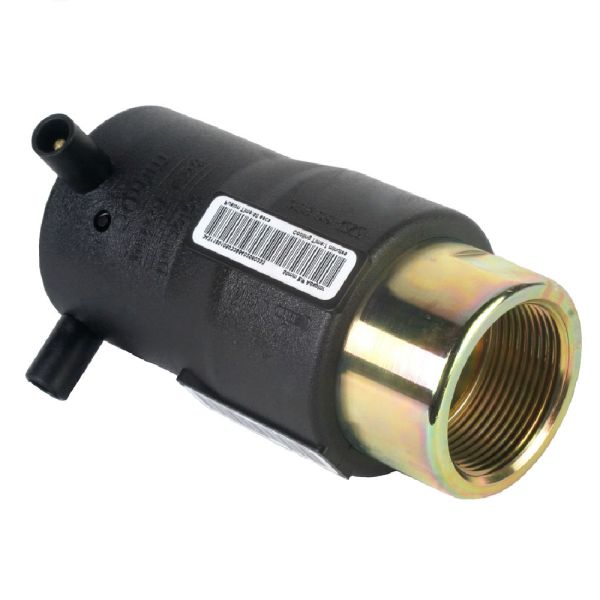

This female BSP fusion adaptor is used to connect a piece of PLX pipe to a male BSP threaded connection.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383469DP PLX Blue Single Wall Adaptor x Female BSP 32mm x 1" £107.96 20% £86.37
383470DP PLX Blue Single Wall Adaptor x Female BSP 50mm x 1 1/2" £200.75 20% £160.60
383471DP PLX Blue Single Wall Adaptor x Female BSP 63mm x 2" £229.66 20% £183.73
