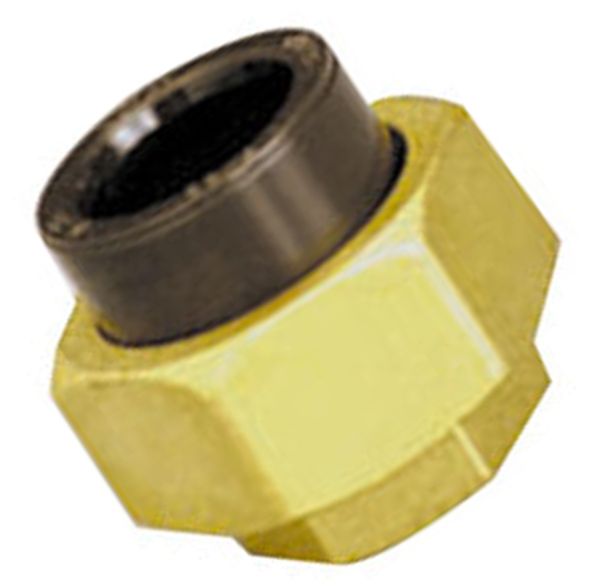

3-Piece Unions Female

3-Piece Unions Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufactured by Durapipe
  • Material: chlorinated polyvinyl chloride (CPVC)
  • For use with hot and cold water.
  • Temperature Range: 5°C - 90°C
  • Pressure Rating: Up to 25 bar

BRASS Female parallel thread.jpg

Product Code D-G (mm x inch) Z (mm) E (mm) E1 (mm) G1 (inch) A1 (mm) A2 (mm) L (mm)
354265 20-1/2" 8 18 14 1" 36 27 40
354266 25-3/4" 9 19 15 1 1/4" 45 32 43
354267 32-1" 11 23.5 16 1 1/2" 52 38 50.5
354268 40-1 1/4" 12 27 20 2" 66 47 59
354269 50-1 1/2" 13 32 18 2 1/4" 72 53 63
354270 63-2" 12 38 22 2 1/2" 89 65 72

Working Pressures & Temperatures

(PN25) 70°C / 10 bar 60°C / 6 bar (PN16) 70°C / 6 bar 60°C / 4 bar
Temperature °C Pressure (bar) Pressure (bar)
5 25 16
20 25 16
40 20 12
60 13 8
70 10 6
80 6 4
90 4 2



Useful Info:

HTA is fully WRAS approved and is suitable for the transportation of drinking water.

Its smooth bore prevents limescale build up and is corrosion free.

Lightweight and easy to install.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP HTA 3-Piece Union Brass Female Threaded 20mm x 1/2"
Code
354265
Product Name
DP HTA 3-Piece Union Brass Female Threaded 20mm x 1/2"
List Price
£17.11
You Pay
£11.98
You Save
30%
Qty
DP HTA 3-Piece Union Brass Female Threaded 25mm x 3/4"
Code
354266
Product Name
DP HTA 3-Piece Union Brass Female Threaded 25mm x 3/4"
List Price
£24.79
You Pay
£17.35
You Save
30%
Qty
DP HTA 3-Piece Union Brass Female Threaded 32mm x 1"
Code
354267
Product Name
DP HTA 3-Piece Union Brass Female Threaded 32mm x 1"
List Price
£33.27
You Pay
£23.29
You Save
30%
Qty
DP HTA 3-Piece Union Brass Female Threaded 40mm x 1 1/4"
Code
354268
Product Name
DP HTA 3-Piece Union Brass Female Threaded 40mm x 1 1/4"
List Price
£55.41
You Pay
£38.79
You Save
30%
Qty
DP HTA 3-Piece Union Brass Female Threaded 50 x 1 1/2"
Code
354269
Product Name
DP HTA 3-Piece Union Brass Female Threaded 50 x 1 1/2"
List Price
£67.72
You Pay
£47.40
You Save
30%
Qty
DP HTA 3-Piece Union Brass Female Threaded 63mm x 2"
Code
354270
Product Name
DP HTA 3-Piece Union Brass Female Threaded 63mm x 2"
List Price
£113.32
You Pay
£79.32
You Save
30%
Qty
6 products
