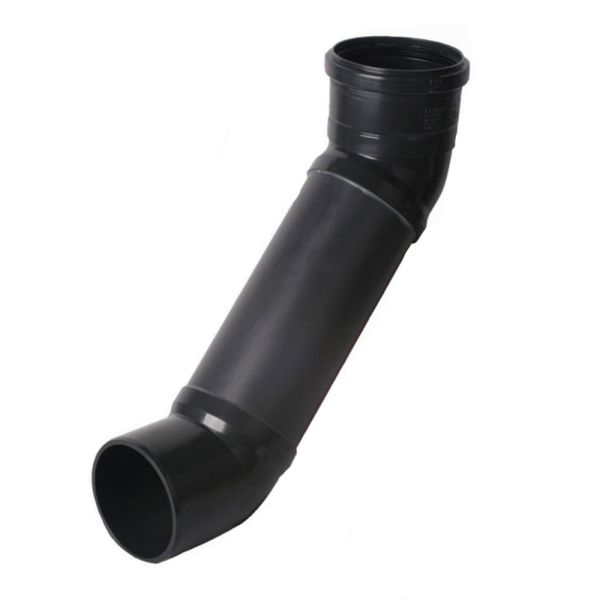

Friaphon Long Cushioning Section
Useful Information
Key Features / Tech Specs & Dimensions:
- Durapipe Friaphon long cushioning section
- Material: ABS/ASA/PVC-U styrene copolymer
- Operating temperature range: 95°C (short term) and 90°C (long term)
- Pressure rated to 0.5 bar
- Colour: charcoal grey
| Product Code | d1 (mm) | d9 (mm) | z1 (mm) | z2 (mm) | tu (mm) | te (mm) | L (mm) | L1 (mm) | L2 (mm) |
| 377121 | 110 | 132 | 266 | 213 | 60 | 88 | 320 | 301 | 250 |
| 377122 | 160 | 187 | 295 | 230 | 71 | 116 | 361 | 346 | 250 |
Useful Info:
Used to connect to pipe system to change the direction of flow and helps minimise impact noise. This long cushioning section is recommended for use where the height of the downpipe is greater than 10m.
Durapipe Friaphon is a specifically designed sound reducing drainage system complete with soundproof fittings that offer incomparable sound reduction properties from noises emitted by sanitary installations in buildings.
Get accessories to assist with the fitting and installing of your Durapipe Friaphon drainage system at Durapipe Friaphon Tools & Accessories
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
