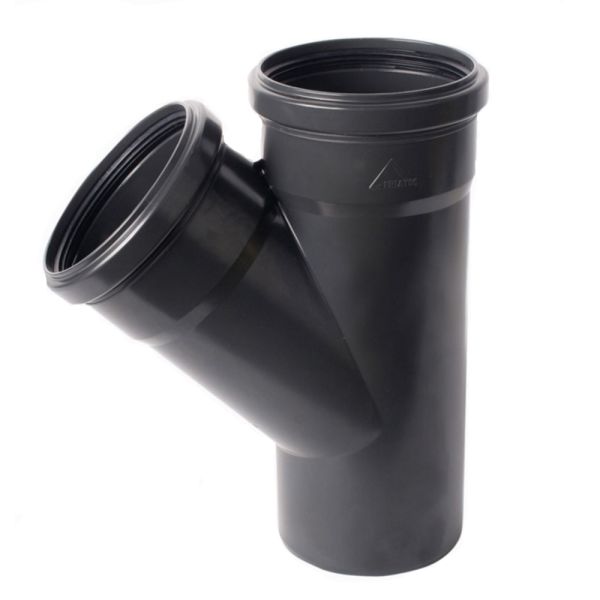

Friaphon Branch 45°
Useful Information
Key Features / Tech Specs & Dimensions:
- Durapipe Friaphon branch 45
- Material: ABS/ASA/PVC-U styrene copolymer
- Operating temperature range: 95°C (short term) and 90°C (long term)
- Pressure rated to 0.5 bar
- Colour: charcoal grey
| Product Code | d1 (mm) | d2 (mm) | d8 (mm) | d9 (mm) | Z1 (mm) | tu (mm) | te (mm) | tv (mm) | tx (mm) | L (mm) |
| 377123 | 110 | 110 | 132 | 132 | 134 | 60 | 223 | 60 | 134 | 283 |
| 377124 | 160 | 110 | 132 | 187 | 159 | 71 | 240 | 60 | 168 | 311 |
| 377125 | 160 | 160 | 187 | 187 | 194 | 71 | 310 | 71 | 194 | 381 |
Useful Info:
This branch fitting is designed to allow you to connect multiple intersecting pipes at an angle of 45°.
Durapipe Friaphon is a specifically designed sound reducing drainage system complete with soundproof fittings that offer incomparable sound reduction properties from noises emitted by sanitary installations in buildings.
Get accessories to assist with the fitting and installing of your Durapipe Friaphon drainage system at Durapipe Friaphon Tools & Accessories
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
