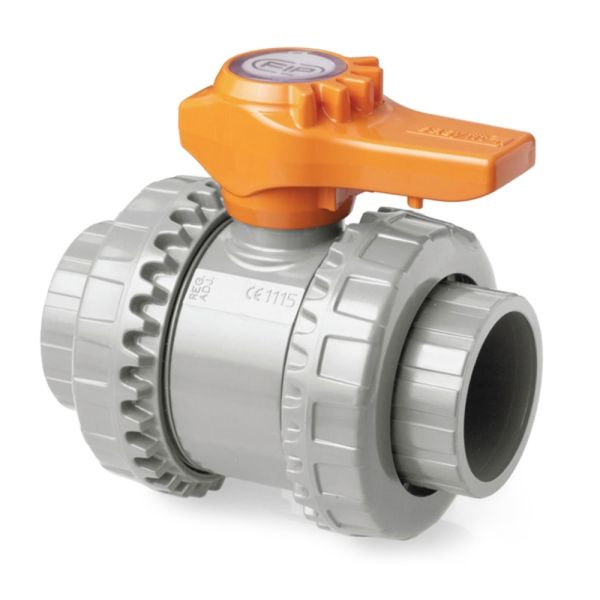

VXE DU Ball Valve FPM

VXE DU Ball Valve FPM

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: chlorinated polyvinyl chloride
  • Seal material: FPM
  • VXE easyfit double union ball fpm
  • Maximum working pressure: 16 bar at 20°C
  • Female ends for solvent welding
  • Available in sizes from 16mm to 63mm

PVCc double union ball valve fpm diagram

Product Code d (mm) DN (mm) L (mm) Z (mm) H (mm) E (mm) B (mm) C (mm) C1 (mm) Pressure Rating (bar)
354795 16 10 14 54 82 54 49 64 20 16
354796 20 15 16 50 82 54 49 64 20 16
354797 25 20 19 53 91 63 62 78 23 16
354798 32 25 22 59 103 72 71 87 27 16
354800 40 32 26 68 120 85 82 102 30 16
354799 50 40 31 77 139 100 92 109 33 16
354801 63 50 38 98 174 118 110 133 39 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These PVCc double union ball valves are ideal for use in industrial and general purpose applications to transport demineralised water, acids, alkalis, industrial waste treatment, chemical processing, soaps, paper, pulps and effluent.

It is true union designed making it easy to install and service through the piping system.

Manufactured to withstand leakage under tough conditions with a threaded seat providing improved seal.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PVCc VXE Easyfit Double Union Ball Valve FPM 16mm
Code
354795
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 16mm
List Price
£71.75
You Pay
£50.23
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 20mm
Code
354796
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 20mm
List Price
£72.09
You Pay
£50.46
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 25mm
Code
354797
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 25mm
List Price
£94.87
You Pay
£66.41
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 32mm
Code
354798
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 32mm
List Price
£111.84
You Pay
£78.29
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 40mm
Code
354799
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 40mm
List Price
£113.93
You Pay
£79.75
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 50mm
Code
354800
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 50mm
List Price
£156.39
You Pay
£109.47
You Save
30%
Qty
DP PVCc VXE Easyfit Double Union Ball Valve FPM 63mm
Code
354801
Product Name
DP PVCc VXE Easyfit Double Union Ball Valve FPM 63mm
List Price
£213.34
You Pay
£149.34
You Save
30%
Qty
7 products
