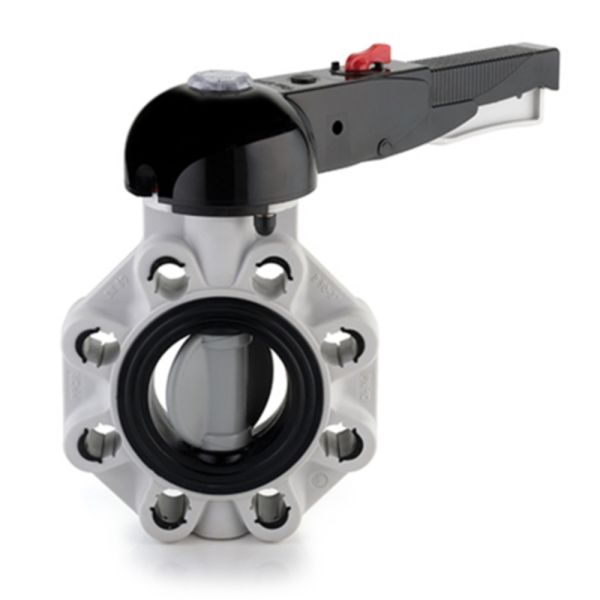

Butterfly Lever Op FPM

Butterfly Lever Op FPM

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Disc Material: chlorinated polyvinyl chloride
  • Body Material: GR-PP Glass Reinforced Polypropylene (plastic resin)
  • Seal material: FPM
  • PVCc FK butterfly valve
  • Maximum working pressure: 16 and 10 bar at 20°C
  • Available in sizes from 50mm to 160mm

DP PVCc FK butterfly valve lever operated diagram

Product Code d (mm) DN (mm) B2 (mm) B3 (mm) H (mm) z (mm) Amin (mm) Amax (mm) F (mm) U (mm) C (mm) C1 (mm) Pressure Rating (bar)
354621 50 40 60 137 132 33 99 109 19 4 175 100 16
354622 75 65 80 164 165 46 128 144 19 8 272 110 10
354625 110 100 107 192 211 56 165 190 19 8 272 110 10
354626 160 150 134 225 268 70 230 242 23 8 330 110 10



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These DP PVCc fk butterfly valves are ideal for use in industrial and general purpose applications that require high performance and reliability.

Used for on/off and control operation, lever operated and installed with a handle locking device to regulate flow.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PVCc FK Butterfly Valve Lever Operated FPM 50mm
Code
354621
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 50mm
List Price
£260.75
You Pay
£182.53
You Save
30%
Qty
DP PVCc FK Butterfly Valve Lever Operated FPM 63mm
Code
354622
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 63mm
List Price
£275.05
You Pay
£192.54
You Save
30%
Qty
DP PVCc FK Butterfly Valve Lever Operated FPM 75mm
Code
354623
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 75mm
List Price
£298.07
You Pay
£208.65
You Save
30%
Qty
DP PVCc FK Butterfly Valve Lever Operated FPM 90mm
Code
354624
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 90mm
List Price
£331.40
You Pay
£231.98
You Save
30%
Qty
DP PVCc FK Butterfly Valve Lever Operated FPM 110mm
Code
354625
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 110mm
List Price
£396.07
You Pay
£277.25
You Save
30%
Qty
DP PVCc FK Butterfly Valve Lever Operated FPM 160mm
Code
354626
Product Name
DP PVCc FK Butterfly Valve Lever Operated FPM 160mm
List Price
£621.54
You Pay
£435.08
You Save
30%
Qty
6 products
