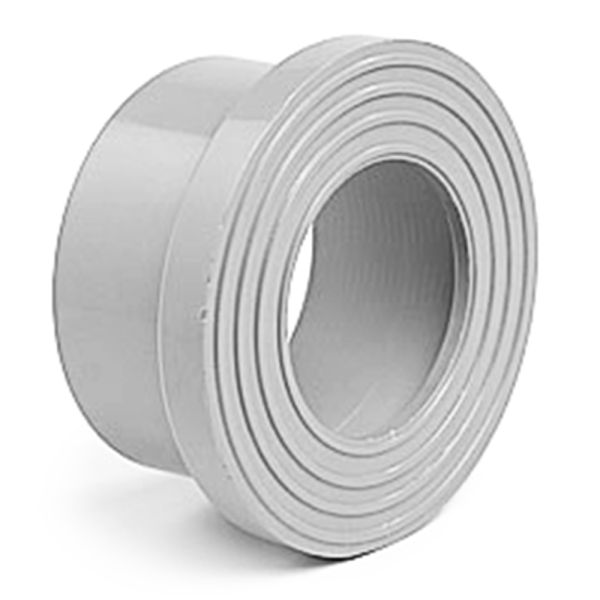

Stub Flange Plain

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain stub flange fitting
  • Pressure rated to 16 bar (up to 110mm), 160mm 10 bar rated
  • Manufactured to DIN 8063
  • Available in sizes from 20mm to 160mm

dp pvcc stub flange plain diagram

Product Code A (mm) B (mm) D (mm) Z1 (mm) Pressure Rating (bar)
351111 34 19.5 7 3.5 16
351112 41 22 7 3 16
351113 50 25 7 3 16
351114 61 29 8 3 16
351115 73 34 8 3 16
351116 90 41 9 3 16
351117 103 47 10 3 16
351118 125 56 10 5 16
351119 150 65 12 4 16
351120 212 90.5 16 4.5 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

Used to join together two pieces of Corzan CPVC pipe together.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351111DP PVCc Stub Flange Plain 20mm £4.00 30% £2.80
351112DP PVCc Stub Flange Plain 25mm £4.50 30% £3.15
351113DP PVCc Stub Flange Plain 32mm £5.96 30% £4.17
351114DP PVCc Stub Flange Plain 40mm £8.54 30% £5.98
351115DP PVCc Stub Flange Plain 50mm £13.52 30% £9.46
351116DP PVCc Stub Flange Plain 63mm £26.43 30% £18.50
351117DP PVCc Stub Flange Plain 75mm £43.00 30% £30.10
351118DP PVCc Stub Flange Plain 90mm £49.46 30% £34.62
351119DP PVCc Stub Flange Plain 110mm £69.42 30% £48.59
351120DP PVCc Stub Flange Plain 160mm £96.98 30% £67.89
