Elbow 45

Elbow 45

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine

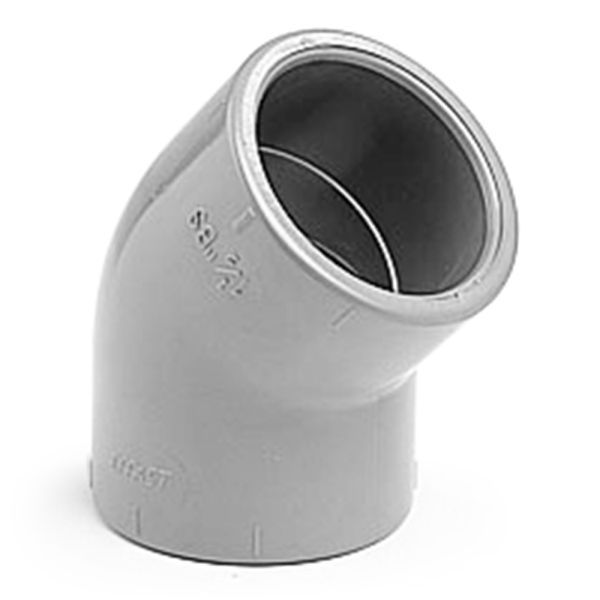

  • Plain elbow 45 fitting
  • Pressure rated to 16 bar (up to 110mm), 160mm 10 bar rated
  • Manufactured to DIN 8063
  • Available in sizes from 20mm to 160mm

DP corzan cpvc elbow 45 plain diagram

Product Code A (mm) C (mm) Z1 (mm) Pressure Rating (bar)
351071 28 21.5 5.5 16
351072 34 25 6 16
351073 42.5 29.5 7.5 16
351074 52 36.5 10.5 16
351075 64 42.5 11.5 16
351076 80 52 14 16
351077 90 61 17 16
351078 107 72.5 21.5 16
351079 130 87 26 16
351080 192 124 38 10



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These plain elbow 45 corzan cpvc fittings are used to join together three pieces of Corzan CPVC pipe of the same dimensions at angle of 45°. PVCc solvent cement should be used along with PVCc Eco-Cleaner to glue the pipe together.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
