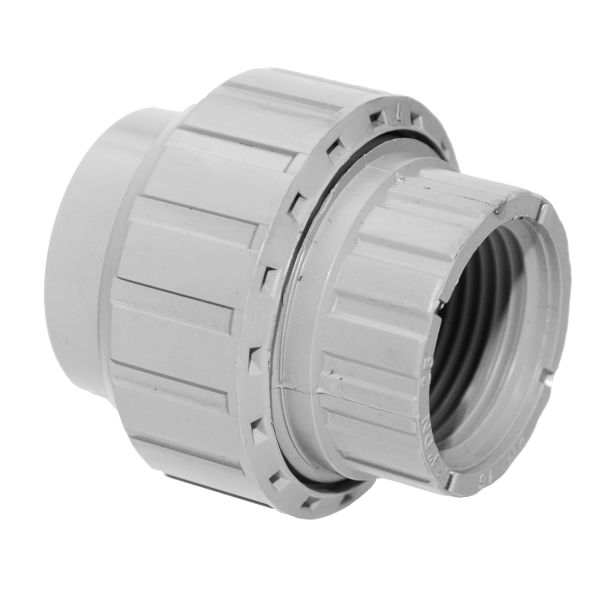

Union Plain x BSP EPDM

Union Plain x BSP EPDM

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain union with bsp threaded EPDM fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 16mm x 38" to 63mm x 2"

dp pvcc union plain bsp threaded epdm diagram

Product Code A (mm) B (mm) C (mm) Z1 (mm) Pressure Rating (bar)
351151 33 41 11.4 15.6 16
351152 41 45 15 14 16
351153 51 51 16.3 15.7 16
351154 58 67 19.1 15.9 16
351155 72 67 21.4 19.6 16
351156 79 72 21.4 19.6 16
351157 98 87.7 25.7 24 33.5



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

Used to join together a PVCc pipe and a threaded fitting together.

The plain end of the fitting should be fixed to the pipe using PVCc solvent cement along with PVCc Eco-Cleaner.

The threaded end will connect to a standard bsp threaded fitting.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PVCc Union Plain / BSP Threaded EPDM 16mm x 3/8"
Code
351151
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 16mm x 3/8"
List Price
£27.98
You Pay
£19.59
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 20mm x 1/2"
Code
351152
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 20mm x 1/2"
List Price
£31.90
You Pay
£22.33
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 25mm x 3/4"
Code
351153
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 25mm x 3/4"
List Price
£35.10
You Pay
£24.57
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 32mm x 1"
Code
351154
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 32mm x 1"
List Price
£43.24
You Pay
£30.27
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 40mm x 1 1/4"
Code
351155
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 40mm x 1 1/4"
List Price
£51.63
You Pay
£36.14
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 50mm x 1 1/2"
Code
351156
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 50mm x 1 1/2"
List Price
£71.93
You Pay
£50.35
You Save
30%
Qty
DP PVCc Union Plain / BSP Threaded EPDM 63mm x 2"
Code
351157
Product Name
DP PVCc Union Plain / BSP Threaded EPDM 63mm x 2"
List Price
£98.35
You Pay
£68.85
You Save
30%
Qty
7 products
