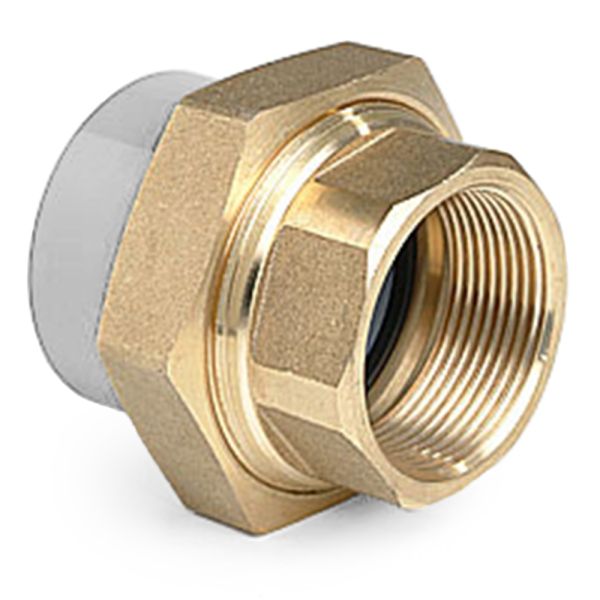

Union Plain x Brass F BSP

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Union plain/brass female bsp thread fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 16mm x 38" to 63mm x 2"

dp pvcc union plain brass female bsp threaded diagram

Product Code A (mm) B (mm) Z1 (mm) Pressure Rating (bar)
351165 34 39 3 16
351166 40 46 3 16
351167 48 52 3 16
351168 55 57 3 16
351169 65 64 3 16
351170 79 70 3 16
351171 88 80 3 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These dp pvcc union fittings are used to join to a piece of Corzan CPVC pipe to provide a threaded brass female connection.

The plain end should be fixed to the pipe using PVCc solvent cement along with PVCc Eco-Cleaner

The threaded female end will connect to a standard bsp threaded fitting.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351165DP PVCc Union Plain / Brass Female BSP Thread 16mm x 3/8" £26.43 30% £18.50
351166DP PVCc Union Plain / Brass Female BSP Thread 20mm x 1/2" £33.62 30% £23.53
351167DP PVCc Union Plain / Brass Female BSP Thread 25mm x 3/4" £42.00 30% £29.40
351168DP PVCc Union Plain / Brass Female BSP Thread 32mm x 1" £50.88 30% £35.62
351169DP PVCc Union Plain / Brass Female BSP Thread 40mm x 1 1/4" £71.50 30% £50.05
351170DP PVCc Union Plain / Brass Female BSP Thread 50mm x 1 1/2" £88.58 30% £62.01
351171DP PVCc Union Plain / Brass Female BSP Thread 63mm x 2" £99.83 30% £69.88
