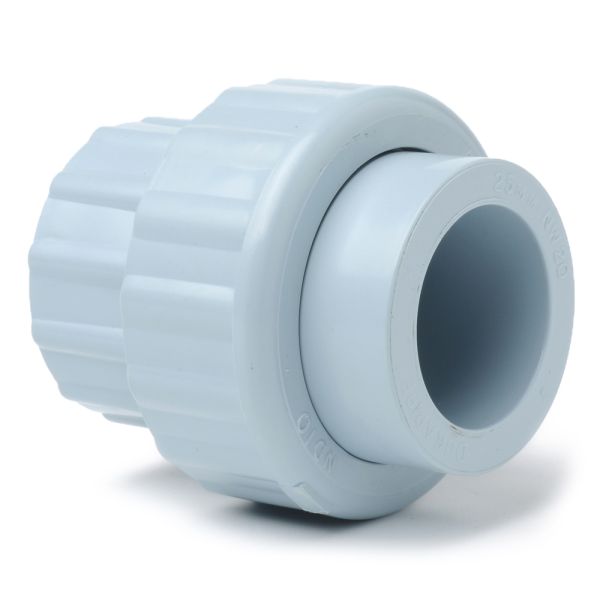

Union

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Acrylonitrile Butadiene Styrene
  • Sizes 16mm to 63mm available
  • EPDM seals
  • Pressure rated to 12.5 bar to 20°C

AirLine-Union-Diagram


Product Code Nominal Size (inch) A (mm) B (mm) Z1 (mm) Z2 (mm) Weight (g)
350906 16 33 42 3 10 19
350907 20 41 47 3 10 29
350908 25 50 53 3 10 46
350909 32 57 64 9 10 70
350910 40 72 78 10 12 140
350911 50 80 92 12 14 154
350912 63 102 112 14 18 270



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350906DP Air-Line Union Plain 16mm £12.76 20% £10.21
350907DP Air-Line Union Plain 20mm £13.53 20% £10.82
350908DP Air-Line Union Plain 25mm £15.53 20% £12.42
350909DP Air-Line Union Plain 32mm £21.26 20% £17.01
350910DP Air-Line Union Plain 40mm £27.03 20% £21.62
350911DP Air-Line Union Plain 50mm £42.98 20% £34.38
350912DP Air-Line Union Plain 63mm £48.91 20% £39.13
