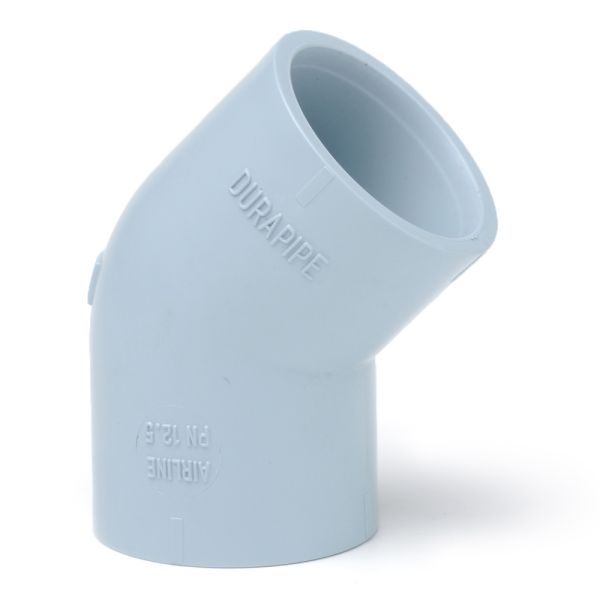

Elbow 45

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Acrylonitrile Butadiene Styrene
  • Sizes 16mm to 110mm available
  • Pressure rated to 12.5 bar at 20°C

AirLine-Elbow-45-Diagram


Product Code Nominal Size (mm) A (mm) C (mm) Z1 (mm) Weight (g)
350848 16 21 19 5 5
350849 20 25 22 6 7
350850 25 31 26 7 14
350851 32 40 31 8 27
350852 40 50 38 10 54
350853 50 62 45 13 100
350854 63 78 54 15 180
350855 75 93 64 18 300
350856 90 112 76 23 550
350857 110 136 90 26 950



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350848DP Air-Line Elbow 45 Plain 16mm £6.19 20% £4.95
350849DP Air-Line Elbow 45 Plain 20mm £6.55 20% £5.24
350850DP Air-Line Elbow 45 Plain 25mm £6.85 20% £5.48
350851DP Air-Line Elbow 45 Plain 32mm £9.13 20% £7.30
350852DP Air-Line Elbow 45 Plain 40mm £13.09 20% £10.47
350853DP Air-Line Elbow 45 Plain 50mm £15.22 20% £12.18
350854DP Air-Line Elbow 45 Plain 63mm £28.10 20% £22.48
350855DP Air-Line Elbow 45 Plain 75mm £48.91 20% £39.13
350856DP Air-Line Elbow 45 Plain 90mm £61.38 20% £49.10
350857DP Air-Line Elbow 45 Plain 110mm £108.46 20% £86.77
