Durapipe 2-Way VKD Ball Valve Threaded
Useful Information

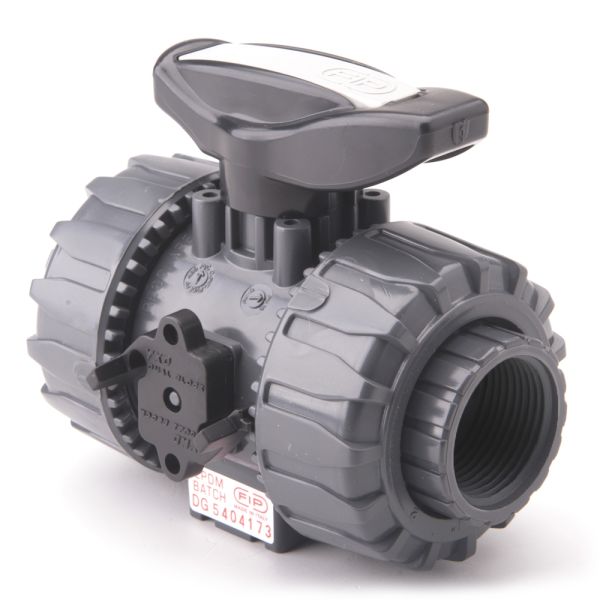

This is a Durapipe double union ball valve with patented Dual Block® technology developed by FIP. It has threaded ends for connecting to male threaded fittings and is available in inch sizes from 1/2" to 2".
| Manufacturer | Durapipe |
| Material | Polyvinyl chloride – unplasticised (PVCu) |
| Seal Material | EPDM |
| Pressure Rating | Up to 16 bar |
| Operating Temperature | 0°C to 60°C |
| Connection | Female threaded union ends |
| Product Code | d (mm) | DN (mm) | PN | L (mm) | Z (mm) | H (mm) | H1 (mm) | E (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) |
| 354582 | 1/2 | 15 | 16 | 16 | 70 | 103 | 65 | 54 | 54 | 29 | 67 | 40 |
| 354583 | 3/4 | 20 | 16 | 19 | 77 | 115 | 70 | 65 | 65 | 35 | 85 | 49 |
| 354584 | 1 | 25 | 16 | 22 | 83 | 128 | 78 | 73 | 70 | 39 | 85 | 49 |
| 354585 | 1 1/4 | 32 | 16 | 26 | 94 | 146 | 88 | 86 | 83 | 46 | 108 | 64 |
| 354586 | 1 1/2 | 40 | 16 | 30 | 106 | 164 | 91 | 98 | 89 | 52 | 108 | 64 |
| 354587 | 2 | 50 | 16 | 36 | 127 | 199 | 111 | 122 | 108 | 62 | 134 | 76 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
