Key Features / Tech Specs:

  • Manufacturer: Norres
  • Lightweight
  • Single ply
  • Supplied in 4 metre lengths
  • Working temperature: -70°C to 260°C
  • Intermittent to 280°C
  • Conforms to RoHS guideline

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374735 51 55 1.500 0.500 1 4
374736 63 67 1.300 0.500 1.2 4
374737 76 80 1.100 0.390 1.6 4
374738 102 106 1.100 0.300 2.3 4
374739 127 132 0.900 0.210 3.2 4
374740 152 157 0.800 0.180 4.2 4

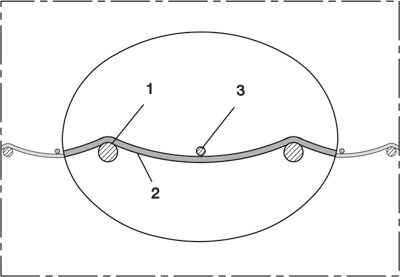

Useful Info:

  1. Spring steel
  2. Silicone coated glass fabric
  3. Cord reinforcement
sil-diag

This single ply silicone-coated glass fabric is both highly flexible and heat resistant allowing for extreme working temperatures between -70°C and 260°C (intermittent to 280°C). This hose is ideal for the suction and delivery of hot and cold air and is commonly used for the extraction of hot exhaust gases, engine warming and aircraft construction.

This highly flexible lightweight hose is both kink proof and leak proof and boasts a very low bend radius. The wall is reinforced with a fabric material as well as cord and spring steel wire.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
374735Norres High Temperature Silicone Ducting 4m x 51mm £125.40 10% £112.86
374736Norres High Temperature Silicone Ducting 4m x 63mm £139.90 10% £125.91
374737Norres High Temperature Silicone Ducting 4m x 76mm £162.15 10% £145.94
374738Norres High Temperature Silicone Ducting 4m x 102mm £206.85 10% £186.17
374739Norres High Temperature Silicone Ducting 4m x 127mm £257.55 10% £231.80
374740Norres High Temperature Silicone Ducting 4m x 152mm £302.50 10% £272.25
