Applications: Medical, pharmaceutical, scientific, industrial, and low-pressure food handling
Compliance:
EU No. 10/2011 (approved for food contact)
RoHS 3 compliant
NSF51 & NSF61 (approved for potable water)
Description

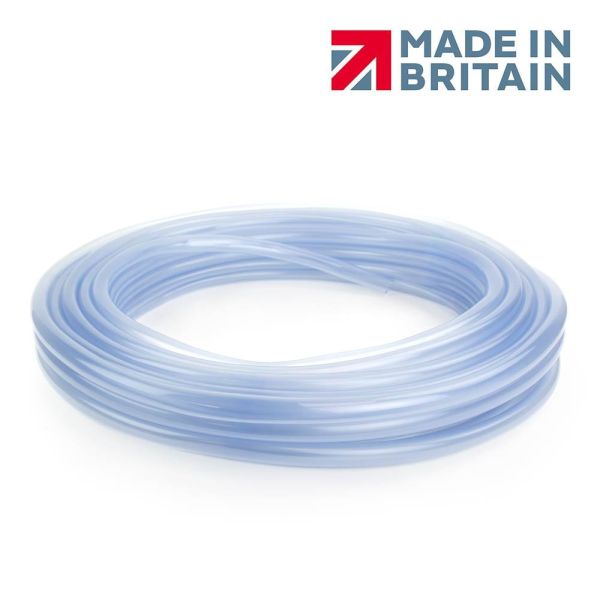

This unreinforced clear PVC tube is designed for low-pressure applications requiring high visibility, flexibility, and chemical compatibility. Manufactured using a low-toxic, odourless PVC formulation, it delivers excellent clarity and resists tainting potable water. With a broad service temperature range and compatibility with various chemicals and solvents, it performs reliably across medical, scientific, and industrial settings.
Key Features & Benefits
Exceptional glass-clear transparency: Provides unobstructed visual monitoring of flow and media condition
Flexible, easy handling: Allows smooth routing and installation, even in tight or complex spaces
Abrasion, corrosion, and chemical resistance: Ensures durability when exposed to demanding operating environments
Broad media compatibility: Suitable for alcohols, oils, greases, solvents, and dilute acids/alkalis
EU and NSF food/drinking water approval: Safe for hygienic applications and potable water systems
Phthalate, cadmium, and silicone-free formulation: Supports safer media contact and compliance with sensitive applications
Wide operating temperature range: Performs reliably from –15°C to +60°C in varied conditions
Clean-environment suitability: Ideal for pharmaceutical, laboratory, and other high-hygiene settings
Technical Data
SKU
Internal Diameter (mm)
External Diameter (mm)
Weight Per Meter (kg)
Bend Radius (mm)
490823
3
6
0.030
54
490824
4
6
0.023
54
490825
5
8
0.035
72
490826
6
9
0.044
81
490827
8
11
0.065
99
490828
8
14
0.139
126
490829
10
13
0.078
117
490830
10
16
0.164
144
490831
12
15
0.092
135
490832
12
18
0.163
162
490833
16
19
0.122
171
490834
16
22
0.220
198
490835
19
22
0.151
198
490836
19
25
0.262
225
490837
22
28
0.325
252
490838
25
31
0.320
279
490839
32
38
0.402
241
490840
38
48
1
432
Downloads
Copely PVC Unreinforced Tube Technical Datasheet
Copely Hose Chemical Resistance Chart
