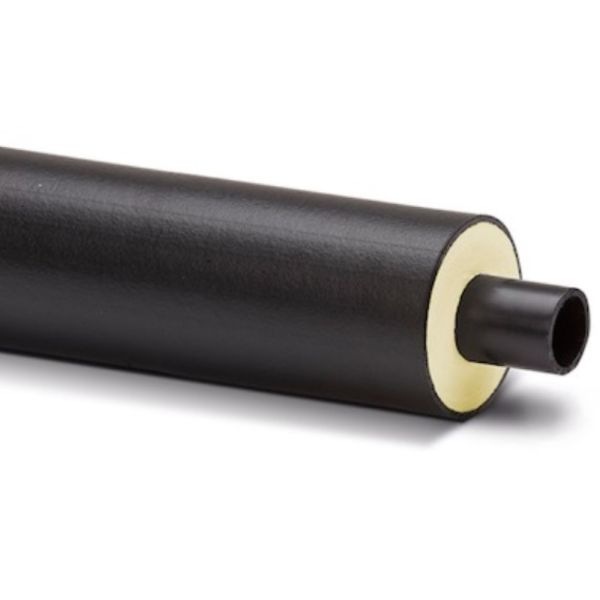

COOLFIT 2.0 Pipe Lengths
Useful Information
All pipe comes pre-insulated at PE100 SDR11.
Supplied in 5m lengths.
Insulation made from GF HE (High Energy Efficient) foam.
Impact-resistant and black in colour.
With free ends ready for electrofusion jointing.
| Product Code | Diameter = d (mm) | Length (m) | Weight (kg/m) | L1 (mm) | di (mm) | PN (bar) | Closest Inch (inch) |
| 398313 | 32 | 5 | 1.140 | 36 | 26.2 | 16 | 1 |
| 398314 | 40 | 5 | 1.534 | 40 | 32.6 | 16 | 1 1/4 |
| 398315 | 50 | 5 | 1.722 | 44 | 40.8 | 16 | 1 1/2 |
| 398316 | 63 | 5 | 2.711 | 48 | 51.4 | 16 | 2 |
| 398317 | 75 | 5 | 3.405 | 55 | 61.4 | 16 | 2 1/2 |
| 398318 | 90 | 5 | 4.320 | 62 | 73.5 | 16 | 3 |
| 398319 | 110 | 5 | 5.692 | 72 | 90.0 | 16 | 4 |
| 398320 | 140 | 5 | 9.021 | 84 | 114.6 | 16 | 5 |
| Pressure Rating | up to 16 bar |
| Operating Temperature | 0°C to 60°C |
| Sizes | 32mm - 140mm |
