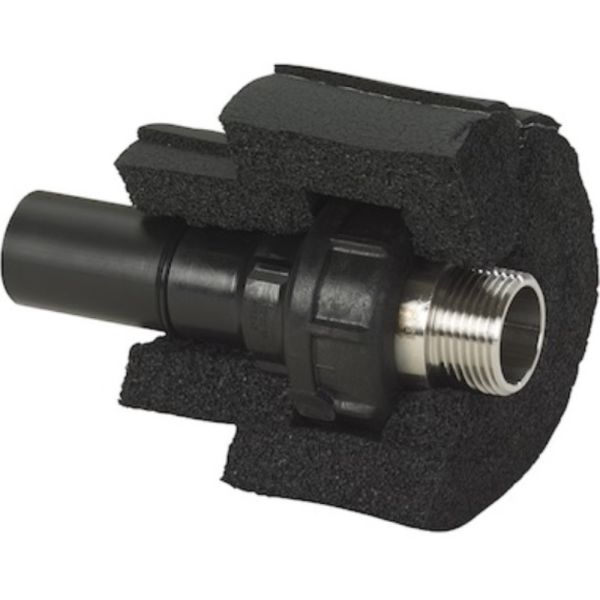

COOLFIT 2.0 Adaptor Union Plain x Thread M SS
Fittings come pre-insulated at PE100 SDR11.
Insulation made from NBR foam.
This fitting is comprised of one spigot end ready for electrofusion jointing and a stainless steel 1.4404 / 316L male threaded end.
Gasket O-ring made from EPDM No. 748 410 008-011
Union Nut: PEGF25
| Product Code | d (mm) | R (Inch) | PN (bar) | Weight (kg) | D (mm) | L (mm) | L1 (mm) | z1 (mm) | z2 (mm) |
| 398470 | 32 | 1 | 16 | 0.310 | 108 | 147 | 36 | 107 | 40 |
| 398471 | 40 | 1 1/4 | 16 | 0.538 | 116 | 163 | 40 | 117 | 46 |
| 398472 | 50 | 1 1/2 | 16 | 0.660 | 126 | 172 | 44 | 124 | 48 |
| 398473 | 63 | 2 | 16 | 1.073 | 139 | 191 | 48 | 136 | 55 |
| Pressure Rating | up to 16 bar |
| Operating Temperature | 0°C to 60°C |
| Sizes | 32mm - 63mm |
