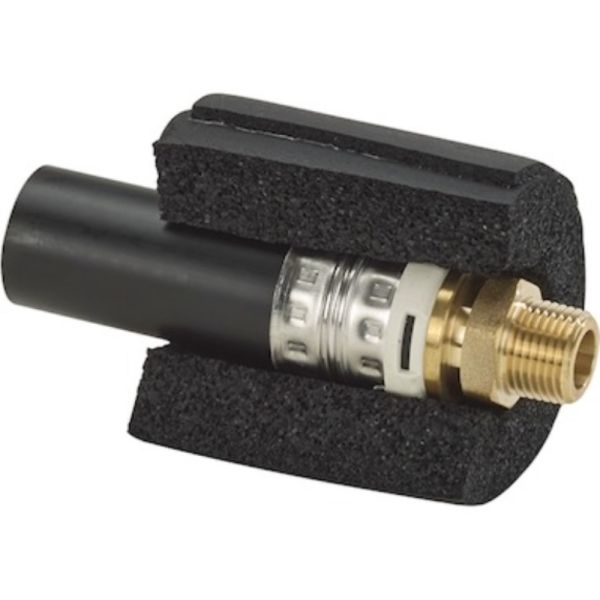

COOLFIT 2.0 Adaptor Plain x Thread M Brass
Useful Information
Fittings come pre-insulated at PE100 SDR11.
Insulation made from NBR foam.
This fitting is comprised of one spigot end ready for electrofusion jointing and a Brass CuZn40Pb2 male threaded end.
Gasket O-ring made from EPDM.

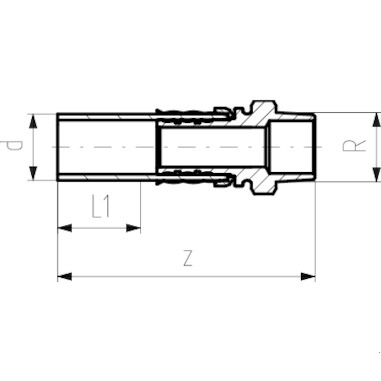

| Product Code | d (mm) | R (Inch) | PN (bar) | Weight (kg) | D (mm) | L1 (mm) | z (mm) |
| 398448 | 32 | 1/2 | 16 | 0.203 | 70 | 36 | 130 |
| 398449 | 32 | 3/4 | 16 | 0.211 | 70 | 36 | 134 |
| 398450 | 32 | 1 | 16 | 0.221 | 70 | 36 | 134 |
| 398451 | 40 | 1 1/4 | 16 | 0.631 | 78 | 40 | 156 |
| 398452 | 50 | 1 1/2 | 16 | 1.013 | 88 | 44 | 168 |
| 398453 | 63 | 2 | 16 | 1.467 | 101 | 48 | 179 |
| Pressure Rating | up to 16 bar |
| Operating Temperature | 0°C to 60°C |
| Sizes | 32mm - 63mm |
