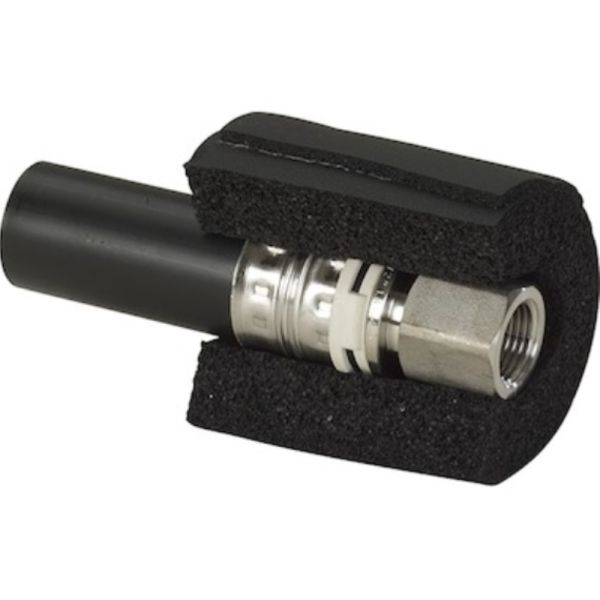

COOLFIT 2.0 Adaptor Plain x Thread F
Fittings come pre-insulated at PE100 SDR11.
Insulation made from NBR foam.
this fitting is comprised of one spigot end ready for electrofusion jointing and a stainless steel 1.4404 / 316L female threaded end.
Gasket O-ring made from EPDM
Please note 140mm will be supplied with spigot ends.

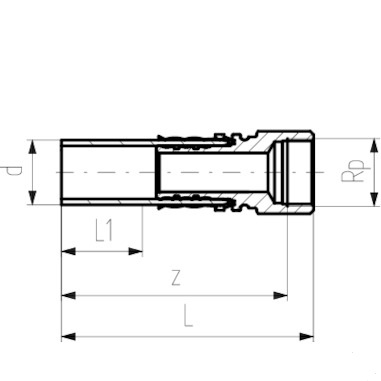

| Product Code | d (mm) | R (Inch) | PN (bar) | Weight (kg) | D (mm) | L (mm) | L1 (mm) | z (mm) |
| 398418 | 32 | 1/2 | 16 | 0.201 | 70 | 132 | 36 | 118 |
| 398419 | 32 | 3/4 | 16 | 0.226 | 70 | 132 | 36 | 116 |
| 398420 | 32 | 1 | 16 | 2.251 | 70 | 132 | 36 | 115 |
| 398421 | 40 | 1 1/4 | 16 | 0.626 | 78 | 157 | 40 | 141 |
| 398422 | 50 | 1 1/2 | 16 | 0.670 | 88 | 150 | 44 | 128 |
| 398423 | 63 | 2 | 16 | 1.170 | 101 | 164 | 48 | 140 |
| Pressure Rating | up to 16 bar |
| Operating Temperature | 0°C to 60°C |
| Sizes | 32mm - 140mm |
