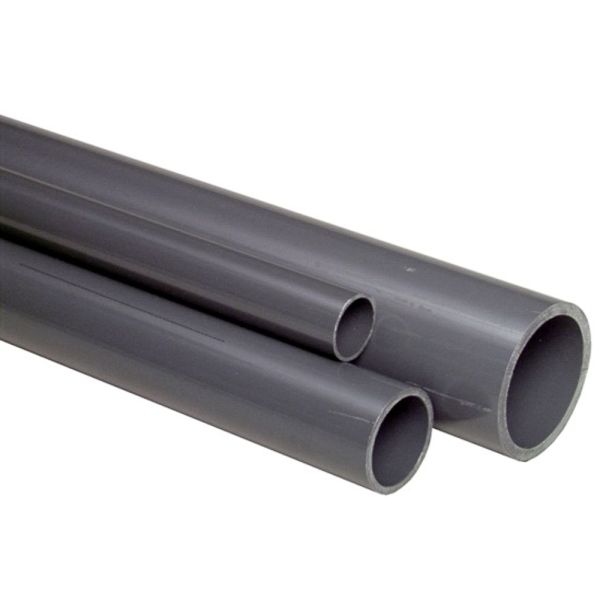

Containment pipe PVC-U
Useful Information
Containment pipe is made from PVC-U, Polyvinylchloride unplasticised DIN 8061.
The colour of our containment pipe is RAL 7011 - dark-grey.
Our containment pipe is supplied with plain ends.
The pipe is supplied in 5m lengths.
| Pressure Rating | 4-16 bar |
| Sizes | 50mm - 315mm |

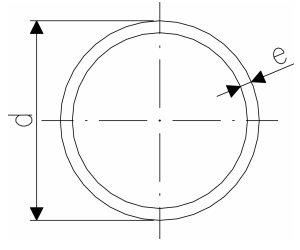

| Product Code | Diameter = d (mm) | Length (m) | Weight (kg/m) | e (mm) | di (mm) |
| 396664 | 125 | 5 | 2.160 | 3.7 | - |
| 396665 | 140 | 5 | 2.690 | 4.1 | 131.8 |
| 396666 | 160 | 5 | 3.490 | 4.7 | 150.6 |
| 396667 | 180 | 5 | 4.430 | 5.3 | 169.4 |
| 396668 | 200 | 5 | 5.440 | 5.9 | 188.2 |
| 396669 | 225 | 5 | 6.850 | 6.6 | 211.6 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
