PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

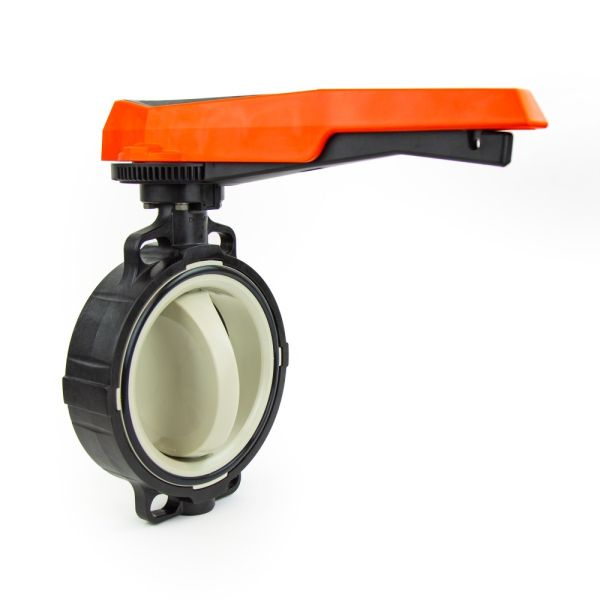

These type 567 PPh butterfly valves offer a reliable, flexible and compact solution for the installation of shut-off valves in larger PPh pipe systems. They come complete with a ratchet hand lever to lock the valve into various positions in order to control the flow more accurately.

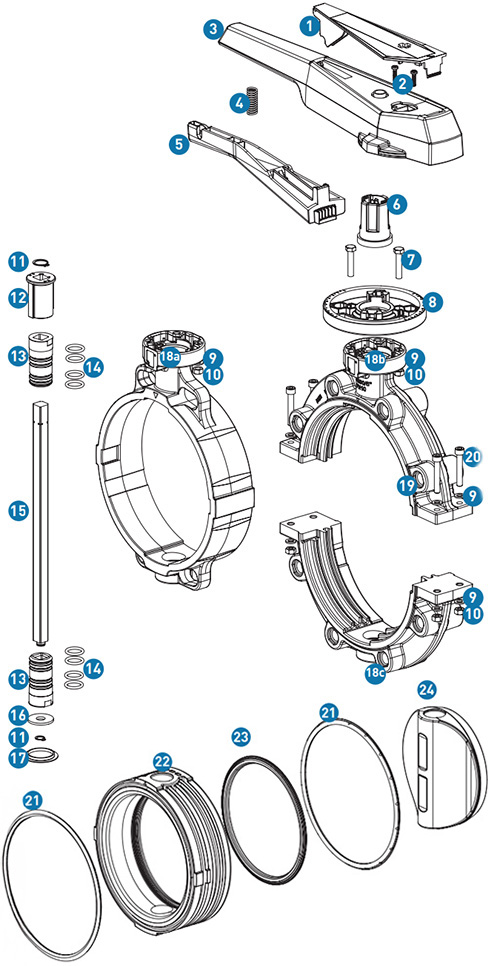

Materials
Number
Part
Material
1
Hand lever clip
PP-GF30
2
Screw
Stainless steel
3
Lever
PP-GF30
4
Spring
Stainless steel
5
Grid lever
PP-GF30
6
Lever insert
PPS
7
Screw
Stainless steel
8
Grid element
PP-GF30
9
Washer
Stainless steel
10
Nut
Stainless steel
11
Circlip
Stainless steel
12
End stop
PP-GF30
13
Bearing bush
PP-H
14
O-ring
EPDM
15
Shaft
Stainless steel
16
Washer
Stainless steel
17
Cap
PE
18
Outer housing
PP-GF30
19
Threaded inserts
Stainless steel
20
Screw
Stainless steel
21
Flange seal
EPDM
22
Inner housing
PP-H
23
Profile seal
EPDM
24
Disc
PP-H
Downloads
Datasheet
