This Type B camlock lever coupling provides a dependable and efficient method of connecting hoses using a male BSPT thread. Constructed from high-quality brass with a Buna seal, it offers robust performance and resistance to wear and corrosion. The cam and groove mechanism allows for fast, secure hose connections without the need for tools, making it ideal for demanding industrial applications where quick operation and leak prevention are essential.
Supplied with a Buna seal, other seal materials and replacements are available here.
Key Features & Benefits
Strong brass body offers durability and corrosion resistance
Buna seal ensures a tight, leak-free connection
Male BSPT thread compatible with standard UK pipe fittings
Lever-operated camlock for quick, secure hose coupling
Handles working pressures up to 17 bar
Suitable for fluid transfer, agriculture, and general industrial use

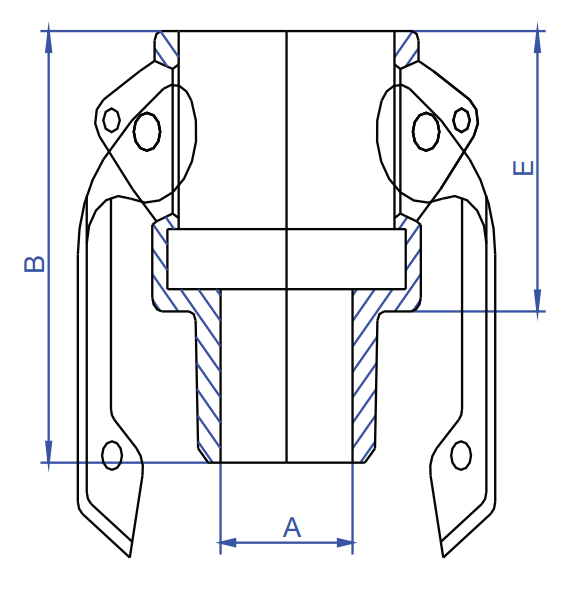

SKU
A (mm)
B (mm)
E (mm)
Pressure (psi)
358498
14
44
28
250
358499
18
52.2
33.2
250
358500
25
59
39.9
250
358501
32
65.5
45.5
250
358502
38.5
69.5
46
150
358503
49
77
52.5
150
358504
60
84.5
55.5
150
358505
77
59.5
58
125
358506
100
92
59
125
