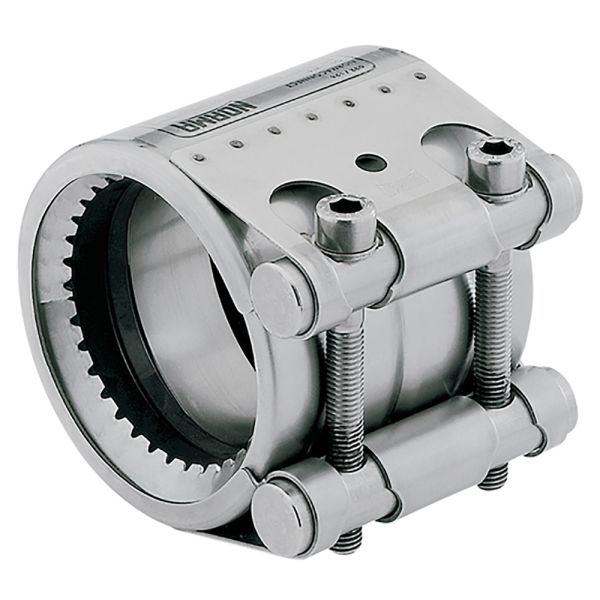

Connect Grip Pipe Couplings
Useful Information
Key Features / Tech Specs:
- Manufactured by Norma
- Suitable for metal and most plastic pipes.
- Double Lip Seal Design.
- Max. Pressure 16 bar
- Housing Material: Stainless Steel 316
- Anchoring ring with conically stamped teeth.
| Prodct Code | PN (bar) | Working Pressure (bar) | C (mm) | a (mm) | d (mm) | H (mm) |
| 382454 | 16 | 70 | 3 | 67 | 50 | 70 |
| 382455 | 16 | 60 | 3 | 67 | 55 | 75 |
| 382456 | 16 | 50 | 8 | 63 | 65 | 85 |
| 382457 | 16 | 50 | 8 | 63 | 70 | 90 |
| 382458 | 16 | 40 | 17 | 78 | 85 | 105 |
| 382459 | 16 | 35 | 25 | 98 | 100 | 120 |
| 382460 | 16 | 35 | 25 | 98 | 110 | 130 |
| 382461 | 16 | 35 | 25 | 98 | 135 | 155 |
| 382462 | 16 | 32 | 35 | 115 | 165 | 195 |
| 382463 | 16 | 32 | 35 | 115 | 195 | 225 |
| 382464 | 16 | 32 | 35 | 142 | 250 | 280 |
Useful Info:
Progressive locking effect.
Axial pipe coupling for connecting unrestrained metal pipes.
NBR sealing sleeve suitable for water, oils, gases and hydro carbon solutions between -20°C to +80°C.
